Looking Glass® 4K
Integrated Visualization System
Looking Glass® 4K
Engineered for durability. Crafted for exceptional visualization.

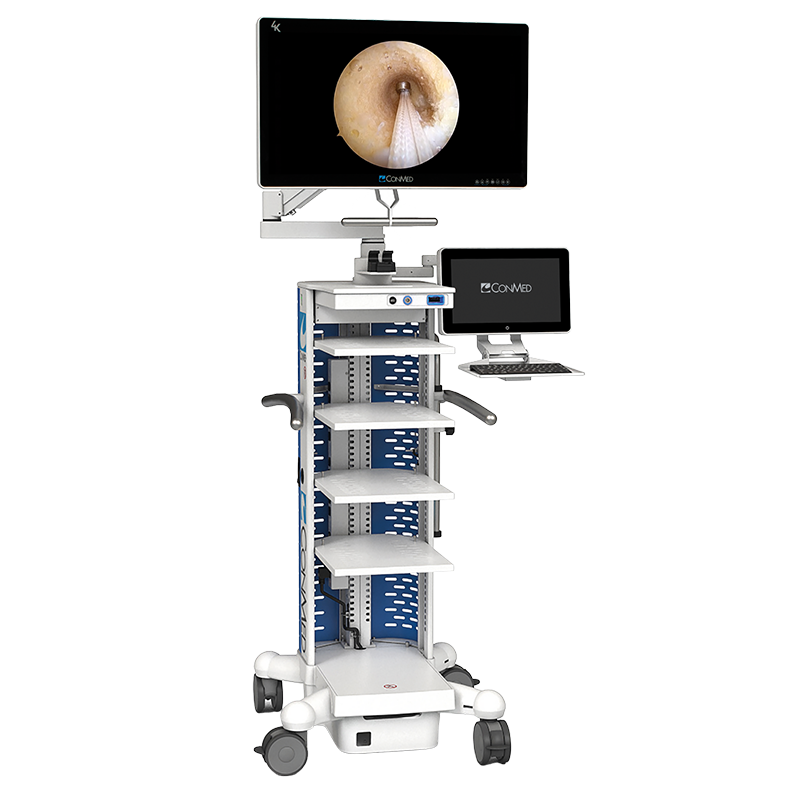

For 4K surgical imaging, choose Looking Glass®. 3-Chip CMOS camera technology and 32” LED monitor with Gorilla Glass offer a brilliant color display for detailed multi-specialty visualization. An integrated “all-in-monitor” design enables versatility, optimizing cart space and reducing your equipment footprint.
This surgical imaging system is designed to support arthroscopic and laparoscopic procedures.

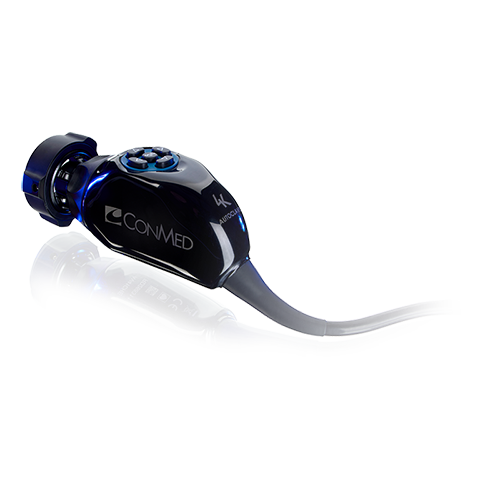

The Looking Glass® 4K Camera head is durable, fully autoclavable, and features a 3-chip CMOS sensor for optimal image quality.
- ShockFlex™ technology helps prevent damage from accidental drops
- Full autoclavability eliminates need for expensive sterilization methods like Sterrad and Steris1
- Customizable 5-button design increases user control for quick adjustments and 2:1 electronic zoom
- Low-profile coupler and ergonomics enable modularity for different specialties
- Additional camera offers an alternate coupler mechanism (from the IM8120) to enable Olympus/Wolf Urology scope compatibility
Backed by a 7-year steam penetration warranty

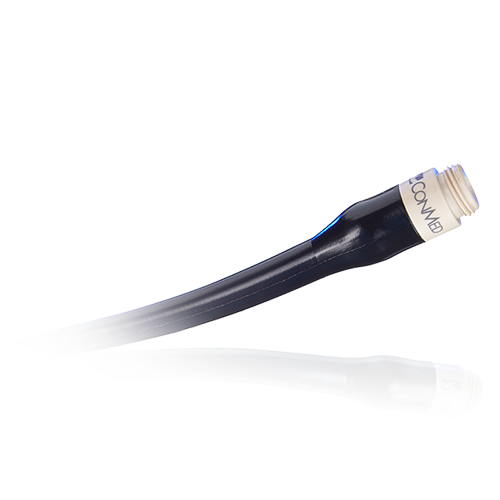

A replacement to fragile fiber optic light guides, eLUMA™ reimagines surgical lighting.
- 10x more durable than traditional fiber optic light guides2
- Consistent and reliable natural light output enables realistic color reproduction
- Plug-and-play connectivity with CCI
Three scope fitting configurations available for Storz-like, Wolf/Dyonic-compatible, and ACMI connection

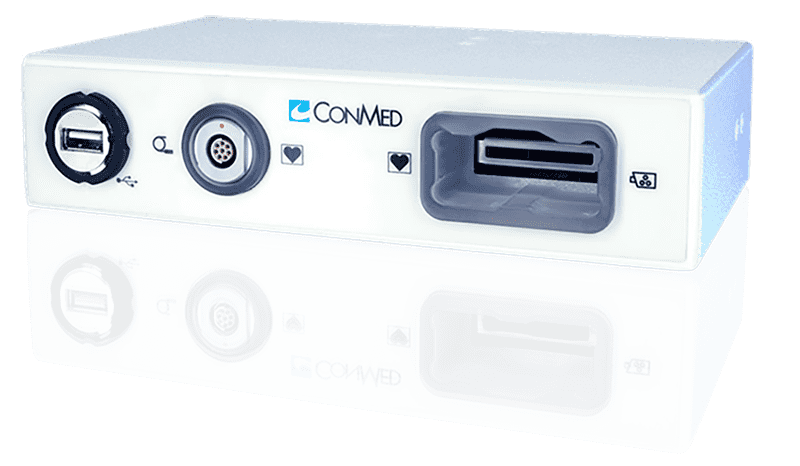

The CCI integrated design offers installation flexibility and minimizes OR footprint
- Compact interface for cables replaces traditional bulky camera and light consoles to save room on your tower
- Colored LED indicator lights ensure intuitive, proper setup
- Integrated USB port simplifies image / video transfer to external devices
- Back-of-cart monitor arm placement expands working area for nurses
- Five adjustable 14” shelves ensure modularity
- 12G/3G SDI connector outlet provides connectivity to auxiliary monitor
- Customizable add ons including insufflator accessories, storage drawer, foot switch bin, camera head holder, and pump holder
Looking Glass delivers brilliant surgical visualization for your surgeons, with the durability and efficiency your perioperative staff needs. Explore our literature for more information.
Documents and Specifications
Capital Unit
Looking Glass® 4K Integrated Visualization System
| CAT # | AV4132 |
| Classification | Class 1, Type CF |
| Main Power | 100-240VAC, 50-60Hz, 0.8Amp |
| Power Consumption | 204VA |
| Display Resolution | 4K (17:9) for image resolution of 4096x2160 |
| Video Outputs | Display Port 1.2, HDMI, 12G-SDI, 3G-SDI, UHD 3840x2160p, 1080p, 50 or 60 Hz |
| Dimensions Console | 777(W)x472(H)x119(D)mm, 30.6(W)x18.6(H)x4.6(D)in |
| Weight Console | 32.3lbs. (14.7kg) |
| Remote Output x2 | 3.5mm Two Conductor (mono) Phone Jack – Female |
| Ingress Protection | System IP20, Power Supply IPX0 |
Looking Glass® 4K Camera Head 3MOS Eyecup
| CAT # | AV41CHE |
| Image Sensor | 3 CMOS sensors 1/3 inch |
| Sensitivity | F8 at 2000lx, 3200K |
| Signal to Noise Ratio | 54dB |
| Ingress Protection Rating | IPX7 |
Looking Glass® 4K Camera Head 3MOS Eyecup - Locking
| CAT # | AV41CHE-L |
| Image Sensor | 3 CMOS sensors 1/3 inch |
| Sensitivity | F8 at 2000lx, 3200K |
| Signal to Noise Ratio | 54dB |
| Ingress Protection Rating | IPX7 |
eLuma™ Electronic Light Guide
| CAT # | AV41LG |
Accessories
Looking Glass® Cable Connector Interface (CCI)
| CAT # | AV41CON |
| Ingress Protection | IPX1 |
ELG Dyonics/Wolf adapter
| CAT # | AVELG51 |
ELG CONMED threaded adapter
| CAT # | AVELG53 |
ELG ACMI adapter
| CAT # | AVELG52 |
Scope to threaded adapter
| CAT # | AVELG53SA |

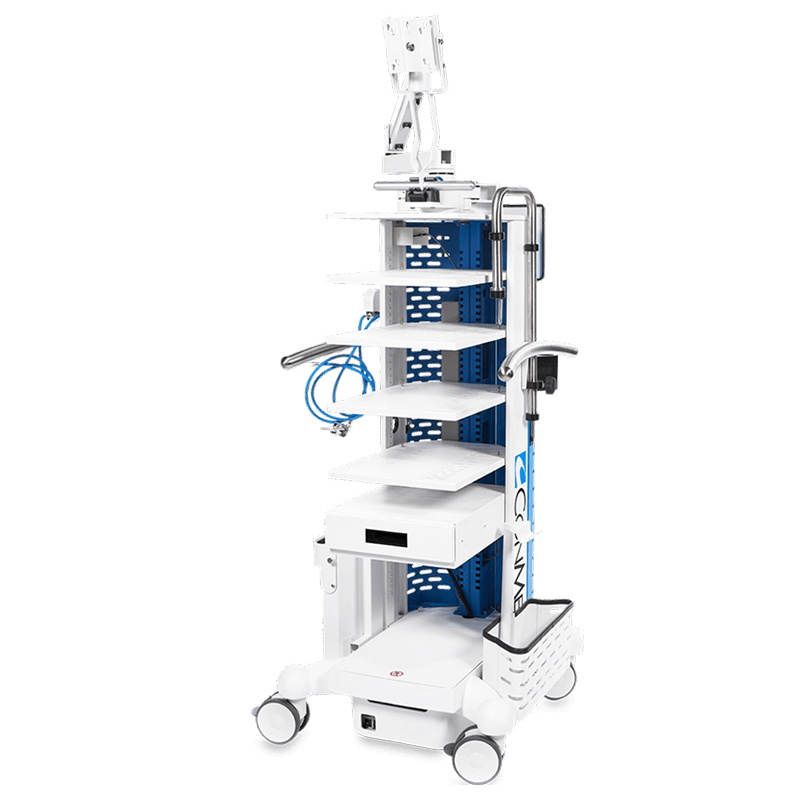

AV8500 Visualization Cart 230V AC
| CAT # | AV8501 |
| Volts AC | 230 |
Primary Articulating Arm
| CAT # | AV8570 |
Secondary Articulating Arm
| CAT # | AV8571 |
Experience the Difference
1 “An Economic Analysis of the Benefits of Sterilizing Medical Instruments in Low-Temperature Systems Instead of Steam.” American Journal of Infection Control, Elsevier, 29 Mar. 2017, www.sciencedirect.com/science/article/pii/S0196655317301475.
2 Data on file, PDD1812924
2 Data on file, PDD1812924
