TruShot® with Y-Knot®

All-in-One Tissue Fixation System

Specifically designed for small joint procedures

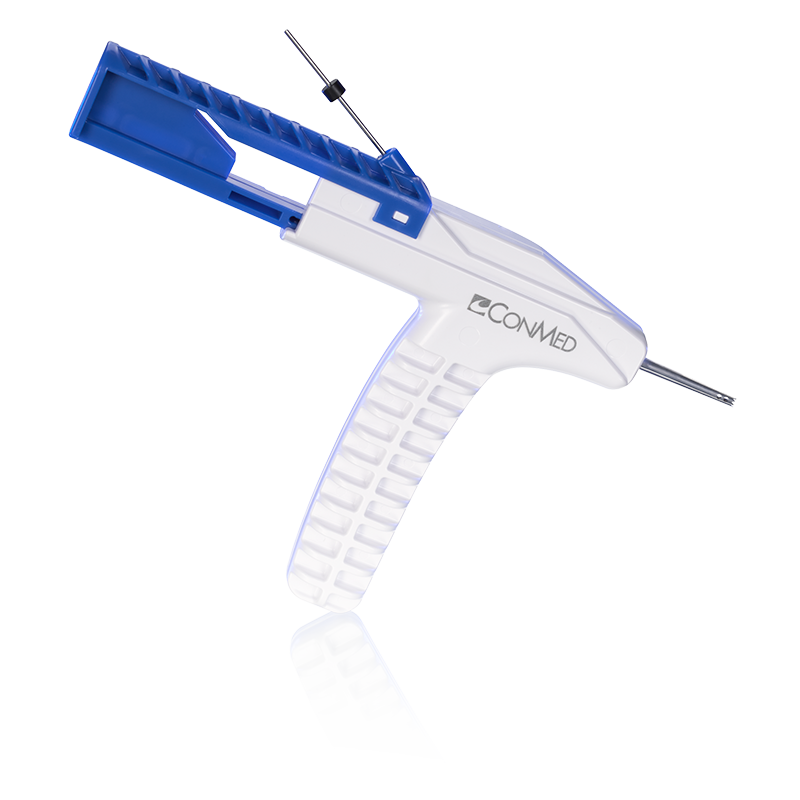

trushot all in one fixation system angled left side shot

TruShot® all-in-one deployment technology is redefining efficiency and accuracy in hand, wrist, elbow, foot, and ankle soft tissue fixation procedures.

By eliminating unnecessary steps, TruShot® simplifies anchor placement in small bone, while the small all-suture anchors are designed to provide the strong fixation surgeons need. The easy-to-use delivery system includes a drill guide, drill bit, and anchor - saving time and reducing the risk of misalignment during drilling and anchor insertion. Available in four configurations to meet your surgical needs.

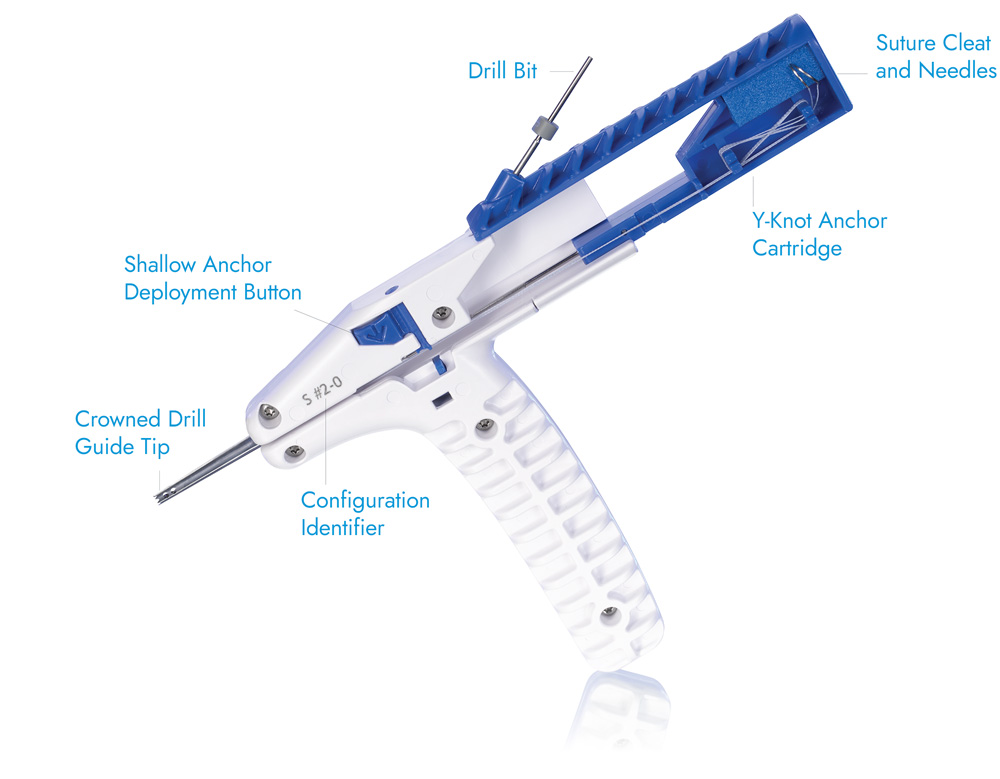

TruShot Guide with callouts to the Y-Knot Anchor Cartridge, Drill Guide Tip, and Drill Bit.

CONMED Hi-Fi® Suture: A Less Abrasive Option

When compared to a leading competitor, Hi-Fi® provides an advantage over FiberWire® in terms of abrasiveness.

CONMED’s #2 Hi-Fi® Suture is
58%
LESS ABRASIVE than Arthrex’s #2 FiberWire® Suture.2
CONMED’s #0 Hi-Fi® Suture is
70%
LESS ABRASIVE than Arthrex’s #0 FiberWire® Suture.2
CONMED’s #2-0 Hi-Fi® Suture is
83%
LESS ABRASIVE than Arthrex’s #2-0 FiberWire® Suture.2

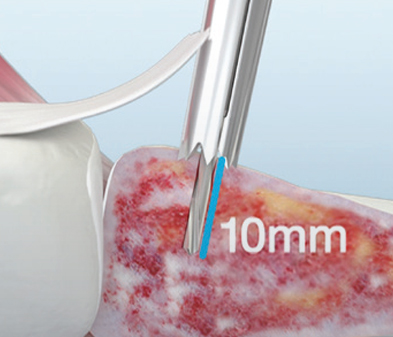

TruShot illustration of the 10mm drill depth

Shallow Anchor Deployment Technology

Configurations using the Y-Knot® Shallow anchor require only 10mm of tunnel depth. A unique deployment mechanism deploys the anchor at the bottom of the tunnel to ensure secure fixation. This allows anchor placement in areas of limited bone depth.

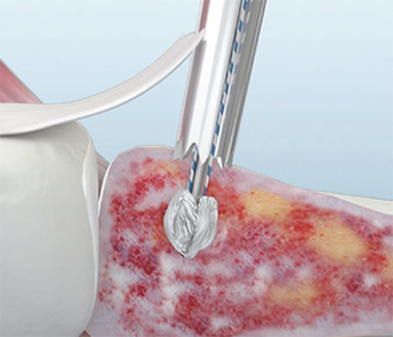

TruShot illustration of the Y-Knot Anchor Strong Fixation

Strong Fixation with Less Bone Removal

The small anchor size can help improve placement options when bone area is limited. The strong all-suture construct provides excellent fixation strength. Testing shows the TruShot® with Y-Knot® Shallow #2-0 with 90N and the TruShot® with Y-Knot® Shallow #0 with 152N of average peak tensile load.1

Average Peak Tensile Load (N)3

Average Peak Tensile Load comparison chart of Anchors with #2 Sutures CONMED Y-Knot® 1.8mm has 422 and CONMED Y-Knot® 1.3mm has 244

Average Peak Tensile Load (N)1

Average Peak Tensile Load comparison chart of Anchors with #0 Sutures CONMED Y-Knot® Shallow has 152.5 and CONMED Y-Knot® Shallow with Anchors with #2-0 Sutures has 90.3

1 Data on File; TR18-00573.
2 Data on File; TR18-00952.
3 Data on File; TR18-00627.

Documents and Specifications

Suture Anchors

TruShot® with Y-Knot® All-Suture Anchor, 1.3mm, one #2 (5 metric) Hi-Fi® Suture with Needles

CAT # Y13TN
Drill Diameter 1.3mm
Drill Depth 20mm

TruShot® with Y-Knot® All-Suture Anchor, 1.8mm, two #2 (5 metric) Hi-Fi Suture with Needles

CAT # Y18TN
Drill Diameter 1.8mm
Drill Depth 20mm

TruShot® with Y-Knot® Shallow All-Suture Anchor, 1.7mm, one #0 (3.5 metric) Hi-Fi Suture with Needles

CAT # YSTN0
Drill Diameter 1.7mm
Drill Depth 10mm

TruShot® with Y-Knot® Shallow All-Suture Anchor, 1.7mm, one #2-0 (3 metric) Hi-Fi Suture with Needles

CAT # YSTN20
Drill Diameter 1.7mm
Drill Depth 10mm

Experience the Difference
