TenoLok®
Dual-Expanding Tenodesis Anchor
Smarter tenodesis starts here
During tenodesis fixation, threaded interference screws can potentially cause tendon wrap around the anchor — or even damage the tendon. To avoid this, the unique dual-expanding features of TenoLok® provide an all-inside repair designed to minimize tendon disruption and tendon wrap.
Strong, Simple Technique
TenoLok® is designed to provide strong tendon-to-bone fixation by expanding to 7.5mm in the cortex and 10mm sub-cortically. Straightforward delivery and fixation combined with no whip-stitching creates a technique that eliminates steps and is easy to replicate.

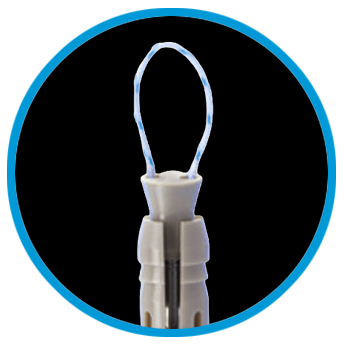

BEFORE
6.0mm TenoLok®
Non-Deployed
6.0mm TenoLok®
Non-Deployed

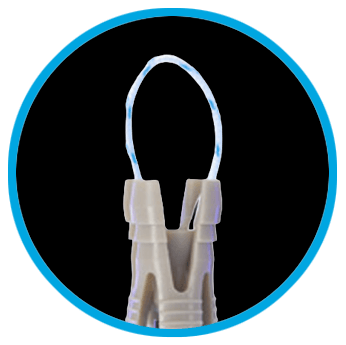

After
6.0mm TenoLok®
Deployed
6.0mm TenoLok®
Deployed
Documents and Specifications
Suture Anchors
TenoLok® Tenodesis Anchor, 5.0mm, one #2 Hi-Fi Suture
| CAT # | T50S |
| Size | 5.0mm |
| Loaded with | One #2 Hi-Fi Suture |
| Qty | 1/box |
TenoLok® Tenodesis Anchor, 6.0mm, one #2 Hi-Fi Suture
| CAT # | T60S |
| Size | 6.0mm |
| Loaded with | One #2 Hi-Fi Suture |
| Qty | 1/box |
TenoLok® Tenodesis Anchor, 6.0mm
| CAT # | T60A |
| Size | 6.0mm |
| Qty | 1/box |
Drill Bit/Guide
TenoLok® Anchor, 5.0mm, one #2 Hi-Fi Suture, Guide Pin, 6.50mm Drill Bit
| CAT # | T50S65 |
| Size | 5.0mm |
| Loaded with | One #2 Hi-Fi Suture, Guide Pin, 6.5mm Drill Bit |
| Qty | 1/box |
TenoLok® Anchor, 5.0mm, one #2 Hi-Fi Suture, Guide Pin, and 7.0mm Drill Bit
| CAT # | T50S70 |
| Size | 5.0mm |
| Loaded with | One #2 Hi-Fi Suture, Guide Pin, 7.0mm Drill Bit |
| Qty | 1/box |
TenoLok® Anchor, 6.0mm, one #2 Hi-Fi Suture, Guide Pin, and 7.5mm Drill Bit
| CAT # | T60S75 |
| Size | 6.0mm |
| Loaded with | One # Hi-Fi Suture, Guide Pin, 7.5mm Drill Bit |
| Qty | 1/box |
TenoLok® Anchor, 6.0mm, one #2 Hi-Fi Suture, Guide Pin, and 8.0mm Drill Bit
| CAT # | T60S80 |
| Size | 6.0mm |
| Loaded with | One #2 Hi-Fi Suture, Guide Pin, 8.0mm Drill Bit |
| Qty | 1/box |
TenoLok® Anchor, 6.0mm, Guide Pin, and 7.5mm Drill Bit
| CAT # | T60A75 |
| Size | 6.0mm |
| Loaded with | Guide Pin, 7.5mm Drill Bit |
| Qty | 1/box |
TenoLok® Anchor, 6.0mm, Guide Pin, and 8.0mm Drill Bit
| CAT # | T60A80 |
| Size | 6.0mm |
| Loaded with | Guide Pin, 8.0mm Drill Bit |
| Qty | 1/box |
