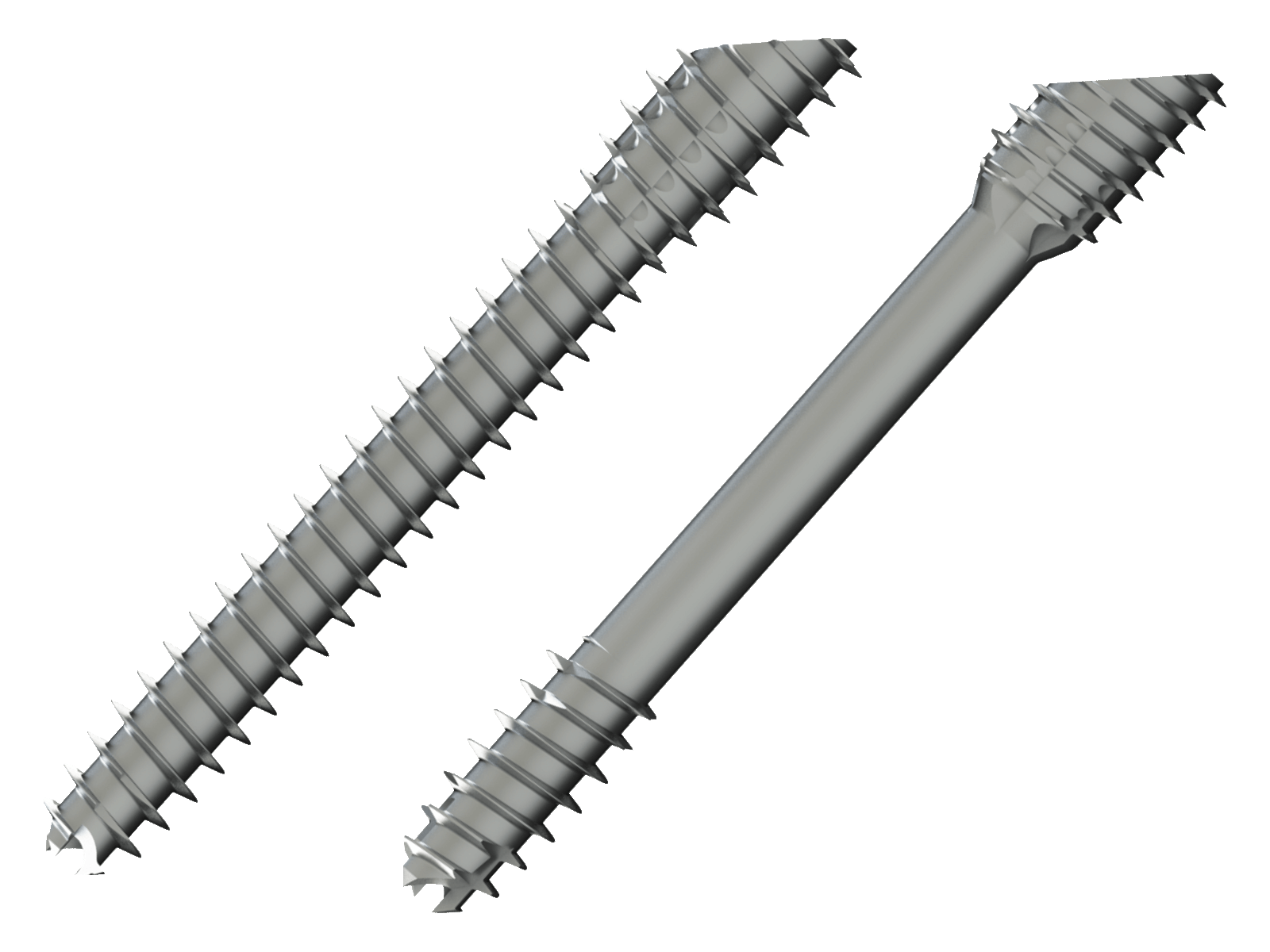

IBS-B™ MIS
Beveled Screw System
Stabilization & precision where it matters most
Built for Every Step of the Foot
Surgeons shouldn't have to choose between efficiency and efficacy.
Whether you’re stabilizing the forefoot, midfoot, or hindfoot, the IBS-B™ MIS Beveled Screw System delivers the strength, control, and versatility your MIS workflow demands.

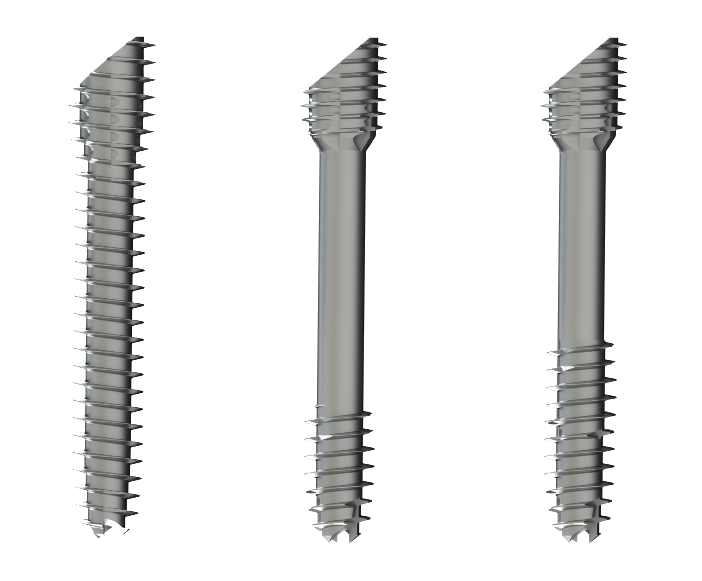

| Diameters | Length Range | Versions |
|---|---|---|
| 3.3 mm | 16 – 60 mm | Compression / Neutralization |
| 4.0 mm | 20 – 60 mm | Compression / Neutralization |
| 6.5 mm | 30 – 115 mm | Compression / Neutralization / Compression + (30 mm distal thread) |

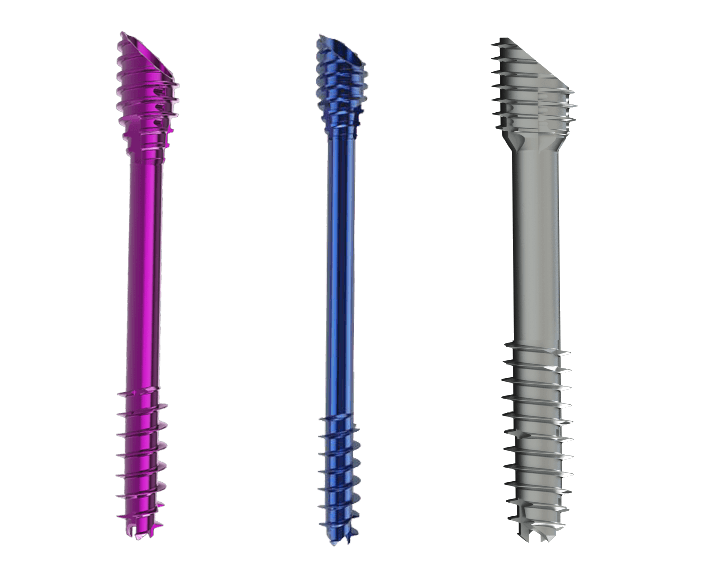

Why Surgeons Choose IBS-B™ MIS

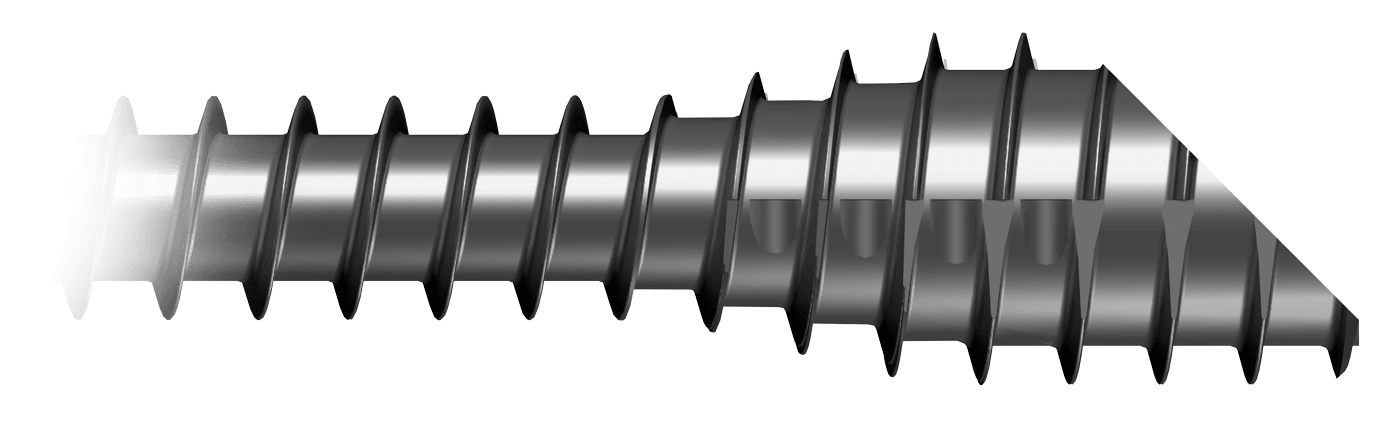

Beveled Head = Perfect Placement
Beveled screws head to minimize implant protrusion and soft tissue irritation in angulated implantations. Inter-thread notches in the screw head can help reduce stress between the head of the screw and bone during the final insertion phase (Patented).

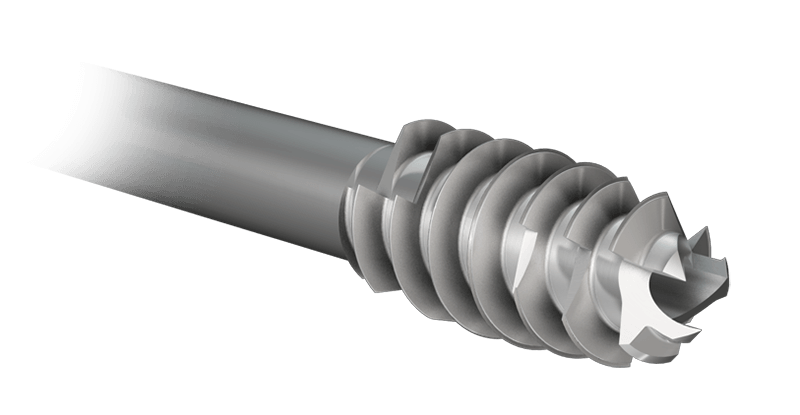

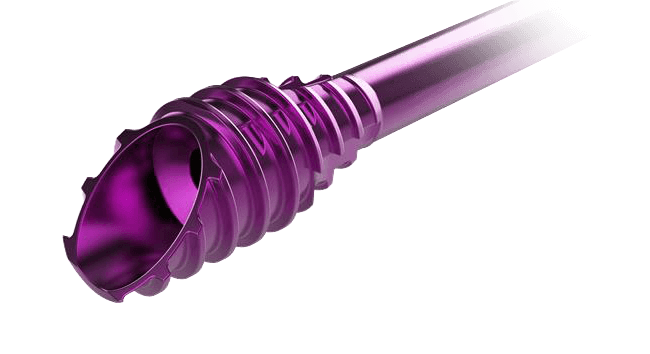

Cannulated Self-Drilling and Self-Tapping
Compression and Neutralization screws are self-drilling and self-tapping. Three cutting edges with specific angulation to guarantee self drilling performance. Distal cutting flutes facilitate the screw insertion.
Titanium. Sterile. Ready to Go.
Every implant ships terminally sterile for OR efficiency and inventory peace-of-mind.

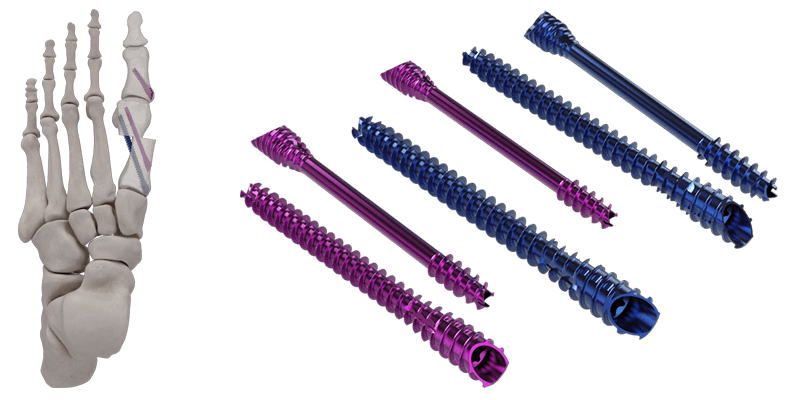

One System, Three Workflows
Diam. in 3.3 mm for delicate forefoot corridors, 4.0 mm for midfoot fusions, or 6.5 mm for robust hindfoot constructs.
Instrumentation That Moves at the Speed of MIS

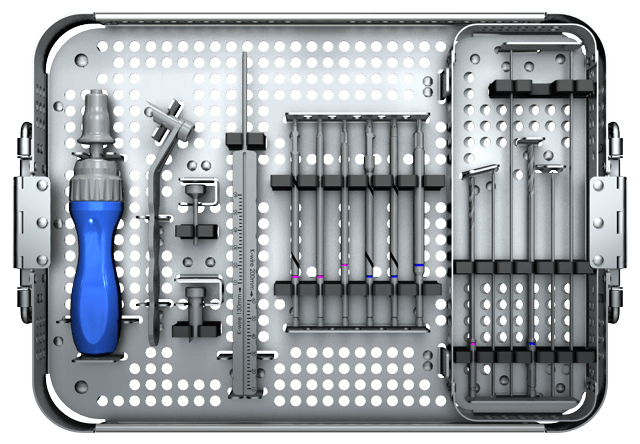

Forefoot Instrument Set
Hindfoot Instrument Set
| Reusable Sets | Covers |
|---|---|
| Forefoot Set | 3.3 mm & 4.0 mm screws |
| Hindfoot Set | 6.5 mm screws |
Each tray includes: screwdriver handle, beveled & non-beveled drivers, K-wire guide, drill guide, soft-tissue protector, measurer, countersinks, drills, and K-wires.
IBS-B™ MIS screws integrate seamlessly with NeoMIS® instrument sets and percutaneous burrs.

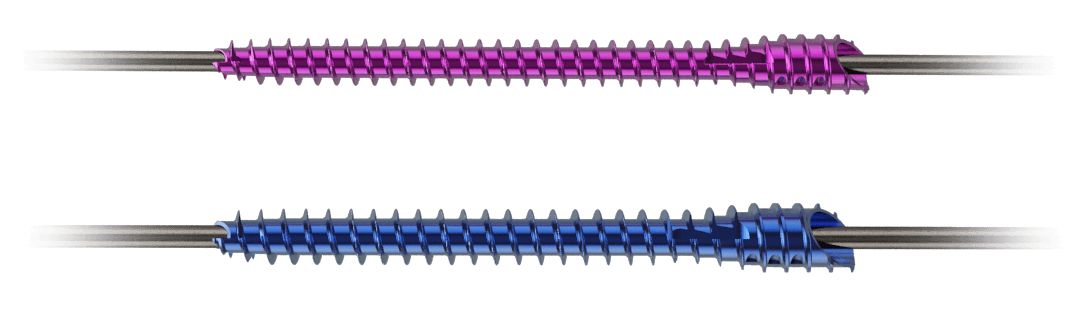

Robust K-wires to prevent skiving
| 1.4 diam K-wire for 3.3 screws |
| 1.6 diam K-wire for 4.0 screws |
| 2.0 diam K-wire for 6.5 screws |

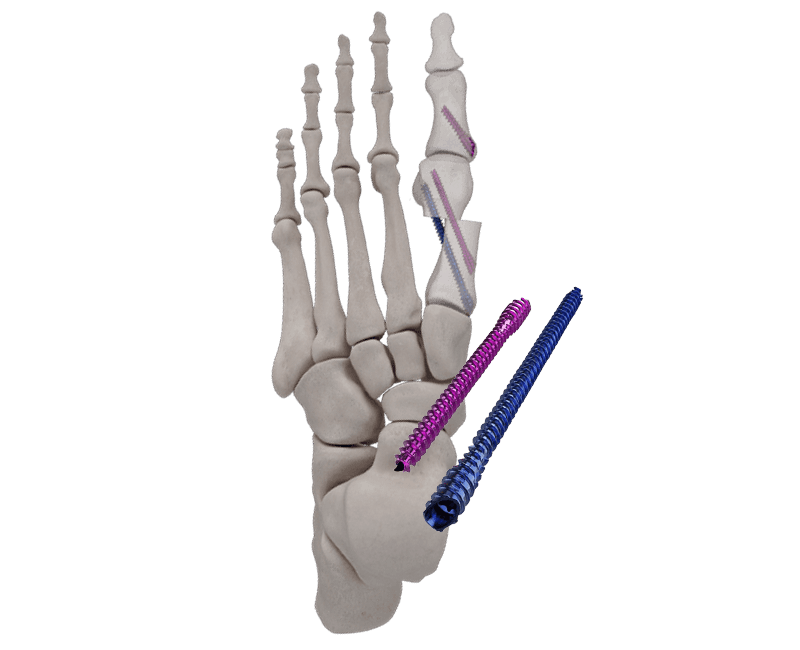

Indications & Applications
Bunions, Lapidus, Akin, and MTP fusions
Midfoot arthrodesis & osteotomies fixations
Calcaneal osteotomies fixations / subtalar fusions
Regulatory & Sterility
IBS-B™ MIS implants are supplied sterile, single-packaged, and are manufactured in accordance with ISO 13485 and applicable regional regulations.*
*Regulatory clearances vary by market; contact your CONMED representative for availability.
Ready to Elevate Your MIS Workflow?
Connect with a CONMED Foot & Ankle specialist for a hands-on demo.
IBS-B™ MIS Beveled Screw System — precision without the guesswork.
Experience the Difference
Documents And Specifications
