Resección artroscópica

Sistemas, cuchillas y rebabas

Una solución integral para satisfacer sus necesidades clínicas

Las piezas de mano ergonómicas y los sistemas de resección versátiles impulsan una línea completa de hojas y fresas. Reduzca las partículas metálicas1 con las hojas Stealth™ DLC o disfrute de numerosas ventajas de nuestra oferta de hojas especiales y de doble propósito.

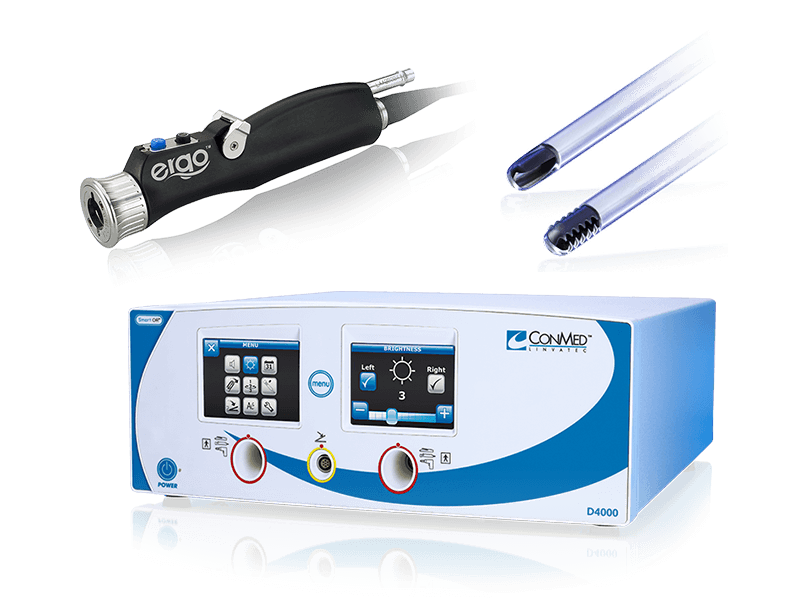

Sistema de Resección Artroscópica D4000™

Nuestros sistemas D4000™ / D4000A™ están repletos de funciones intuitivas que brindan nuevos niveles de simplicidad, versatilidad y rendimiento al quirófano.

Disfrute de estas características:

Una interfaz fácil de usar

Dos puertos para piezas de mano plug and play proporcionan energía continua e ininterrumpida

Versatilidad para admitir piezas de mano, 5 idiomas y perfiles de usuario personalizables

Conectividad inalámbrica incorporada para admitir múltiples controladores de pie inalámbricos

Pieza de mano para afeitadora Ergo™

Ergo™ cuenta con un mango diseñado ergonómicamente que proporciona una distribución uniforme del peso de 19,3 oz para un equilibrio y control óptimos cuando se sostiene de forma tradicional (rodilla), estilo daga (hombro y cadera) o agarre de lápiz. Esto elimina la fatiga asociada con los estilos tradicionales con forma de barril.

Las hojas y fresas CONMED son las mejores de su clase con el torque de 35 in-oz de Ergo y la velocidad máxima de 12,000 RPM. Ergo™ también permite la inserción bidireccional de la hoja.

Cuchillas Stealth™ DLC

Con el revestimiento de carbono tipo diamante (DLC) en la punta de corte distal, experimente una fricción ultradura y ultrabaja para reducir las partículas metálicas.1

1 TR17-00073, TR17-00165, TR17-00073-1.

Manejo de fluidos de resección y ablaciónCuchillas recubiertas de carbono DLC Stealth DiamondLike

Cuchillas de doble propósito Ultra Series™

Una oferta 2 en 1 para tejido y hueso que consigue el máximo rendimiento y agresividad. Cuando se alimenta con la consola D4000™, las funciones "Turbo" le permiten alternar entre los modos de oscilación y avance.

Manejo de fluidos de resección y ablaciónCuchillas de doble propósito serie Ultra

Hojas y fresas Sterling®

Esta serie se crea con la técnica de fabricación patentada XtraSharp™, que utiliza rectificado electroquímico (ECG) en lugar de mecanizado por descarga eléctrica (EDM) para lograr un mejor rendimiento. Un filo más afilado equivale a cortes más limpios, menos desgarros del tejido y menos piezas semiadheridas para reducir las obstrucciones.

Manejo y ablación de líquidos de resecciónHojas y fresas Sterling

Cuchillas especiales:

key feature icon

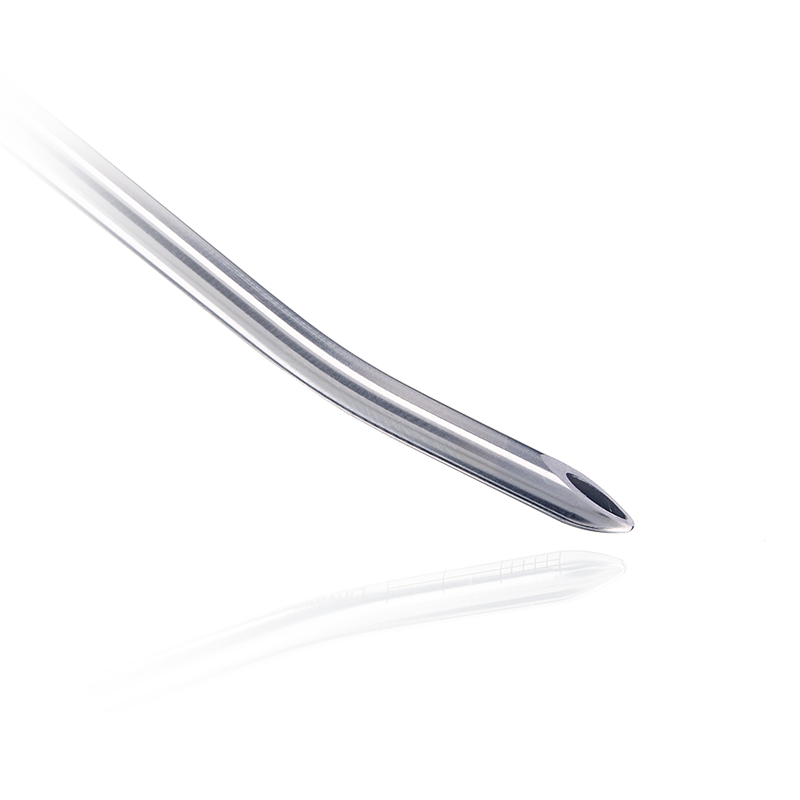

Cuchillas Lanza®
Una ventana de corte interna doble y un diseño cónico brindan fácil acceso a espacios reducidos y anatomías de difícil acceso.

key feature icon

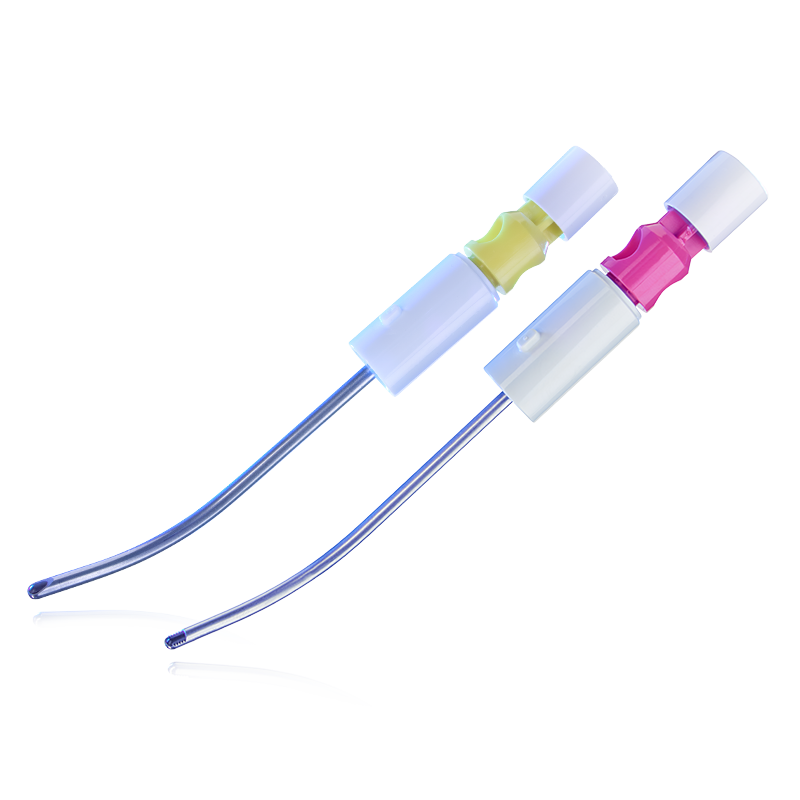

Cuchillas/fresas para juntas pequeñas Mimix™
Diseñadas para imitar la anatomía de las articulaciones pequeñas, estas hojas presentan una curvatura y una longitud de trabajo adaptadas para un acceso rápido y preciso en espacios anatómicos reducidos.

key feature icon

Cuchillas/fresas Signature Series™
Diseñado para su uso en la articulación de la cadera para permitir una remodelación más efectiva de la anatomía de la cadera.

Documentos y especificaciones

Capital Unit

CAT #
D4000A
D4000A Arthro Power Console with Irrigation
Height
5.6"(14.2cm)
Width
14"(35.6cm)
Depth
16.5"(41.9cm)
D4000
D4000
D4000 Arthro Power Console
Height
5.6"(14.2cm)
Width
14"(35.6cm)
Depth
16.5"(41.9cm)

Accessories

CAT #
D4001
D4001, Procedure Cart
CAT #
D9900
Thorne Chuck 5/32”
CAT #
W2000
Resection Wireless Foot Control
CAT #
H9002
Bur Sheath, 4.0mm or 4.5mm to make unhooded bur
Purchasing Unit of Measure
6
CAT #
H9000
Bur Sheath, 5.5mm or 6.0mm to make unhooded bur
Purchasing Unit of Measure
6

Handpieces

CAT #
D4240
Ergo™ Shaver Handpiece, Two-Button
CAT #
D9924
Two-Button Advantage® Turbo Shaver
Forward Speed
500-12,000rpm
Oscillate Speed
500-2,500cpm, Single and Multi Turn Oscillate
Weight
17.8oz (505g)

FRR/UltraFRR

CAT #
S9246A
Full Radius Resector® (FRR) Stealth™
Diameter
5.5mm
Working Length
13cm
CAT #
S9247A
FRR® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SC9248
Full Radius Resector® (FRR) Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
SDPS-C010
UltraFRR™ Stealth™, 4.2mm
Diameter
4.2mm
Working Length
13cm
CAT #
SDPS-C011
UltraFRR® Stealth™
Diameter
5.5mm
Working Length
13cm

Gator/UltraGator

CAT #
S9260A
Gator® Stealth™
Diameter
5.5mm
Working Length
13cm
CAT #
S9263A
Gator® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SC9264
Gator® Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
SDPS-C002
UltraGator® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SDPS-C003
UltraGator® Stealth™
Diameter
5.5mm
Working Length
13cm

Great White®

CAT #
S9299A
Great White® Stealth™, 4.2mm
Diameter
4.2mm
Working Length
13cm
CAT #
S9399A
Great White® Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
S9599A
Great White® Stealth™
Diameter
5.5mm
Working Length
13cm

3.5mm Blades

CAT #
DPS-C001
Ultra Dual Purpose Blades - 3.5mm UltraGator
CAT #
DPS-C009
Ultra Dual Purpose Blades - 3.5mm UltraFRR
CAT #
DPS-C004
Ultra Dual Purpose Blades - 3.5mm UltraTiger
CAT #
35ULT-ST-ZZ
Ultracut®, 3.5mm, Shaver Blade
Diameter
3.5mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
9399A
Great White
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9264
Gator
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9248
Full-Radius Resector (FRR)
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9240
Tiger
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9253
Cuda
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9760
Meniscus Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9290
Dragon End Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9283
End Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6

4.2mm Blades

CAT #
DPS-C002
Ultra Dual Purpose Blades - 4.2mm UltraGator
CAT #
DPS-C005
Ultra Dual Purpose Blades - 4.2mm UltraTiger
CAT #
DPS-C010
Ultra Dual Purpose Blades - 4.2mm UltraFRR
CAT #
C9405A
Ultracut®, 4.2mm, Shaver Blade
Diameter
4.2mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
42ULT-LB-ST
Ultracut®, Liberator Plus™, 4.2mm, Shaver Blade
CAT #
42ULT-ZZ-MT
Ultracut®, 4.2mm, Pre-Bent, Shaver Blade
CAT #
C9298A
Sterling Mako, 4.2mm, Shaver Blade
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9299A
Great White
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9242
Tiger
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9254
Cuda
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9761A
Meniscus Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9291
Dragon End Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9284
End Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9274
Slotted Whisker
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6

5.5mm Blades

CAT #
DPS-C003
Ultra Dual Purpose Blades - 5.5mm UltraGator
CAT #
DPS-C011
Ultra Dual Purpose Blades - 5.5mm UltraFRR
CAT #
C9415
Ultracut®, 5.5mm, Shaver Blade
Diameter
5.5mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
9298A
Sterling Mako, 5.5mm, Shaver Blade
Diameter
4.2mm
Length
13m
Purchasing Unit of Measure
6
CAT #
9599A
Great White
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9260A
Gator
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9246A
ll-Radius Resector (FRR)
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9255
Cuda
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9762
Meniscus Cutter
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9292
Dragon End Cutter
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6

Burs

CAT #
H9133
Sterling Lightning, 4.5mm, Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
LE-40OHP
Mimix™ 4.0mm Oval Bur
CAT #
LE-40SHP
Mimix™ 4.0mm Spherical Bur

4.8mm Blades

CAT #
9297A
Great White
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9262
Gator
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9245
Full-Radius Resector (FRR)
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6

3.5mm and 4.0mm Burs

CAT #
H9110
Spherical Bur
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101
Oval Bur
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101RH
Oval Bur, Reduced Hood
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101LH
Oval Bur, Southpaw
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9121
Tapered Bur
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9121RH
Tapered Bur, Reduced Hood
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6

4.5mm and 5.0mm Burs

CAT #
H9111
Spherical Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9103RH
Oval Bur, Reduced Hood
Diameter
5.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9118
Cyclone Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9131
Vortex Router
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9134
Vortex Router, Unhooded
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6

5.5mm and 6.0mm Burs

CAT #
H9112
Spherical Bur
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9112RH
Spherical Bur, Reduced Hood
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9102
Oval Bur
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9102LH
Oval Bur, Southpaw
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9122
Tapered Bur
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9119
Cyclone Bur
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9132
Vortex Router, 5 flutes
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6

Blades

CAT #
9391A
Lanza™
Size
4.2mm
Length
13cm
Max F R Speed
6,000 RPM
Max Oscillate Speed
2,500 RPM
Tip Design
Tapered
Straight Pre bent
Straight
Cutting Profile
Smooth outer, smooth/dual inner
CAT #
9391M
Pre-bent Lanza™ ,13cm
CAT #
HPS-CB09
Pre-bent Lanza™ , 19cm*
CAT #
LE-29FRP
Mimix™ 2.9mm 35° FRR Stealth™
CAT #
LE-35FRP
Mimix™ 3.5mm 35° FRR Stealth™
CAT #
LE-29CUP
Mimix™ 2.9mm 35° Cuda Stealth™
CAT #
LE-35CUP
Mimix™ 3.5mm 35° FRR Stealth™
CAT #
HPS-CB01
HPS Great White®, Prebent Convex, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB02
4.20mm HPS Great White®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB03
4.20mm HPS FRR, Prebent Convex
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB04
HPS FRR, Prebent Concave, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB05
HPS Gator®, Prebent Convex, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB06
4.20mm HPS Gator®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB07
4.20mm HPS Ultracut®, Prebent Convex
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB08
4.20mm HPS Ultracut®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm

4.5mm Burs

CAT #
HPS-HB01
4.50mm EL Hip Prebent Spherical Bur
Diameter
4.50mm
Working Length
19.00cm
CAT #
HPS-HB02
EL Hip Prebent Polishing Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H001
HPS Spherical Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H004
HPS Polishing Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H005
4.50mm HPS Vortex® Bur
Diameter
4.50mm
Working Length
19.00cm
CAT #
EL9111RH
4.50mm, Sterling, Bur, Spherical, 20° Reduced Hood

4.0mm Burs

CAT #
HPS-HB03
4.00mm EL Hip Prebent Oval Bur
Diameter
4.00mm
Working Length
19.00cm
CAT #
HPS-H002
HPS Oval Bur, 4.0mm x 19.0cm
Diameter
4.0mm
Working Length
19.0cm
CAT #
HPS-H003
HPS Pear Bur, 4.0mm x 19.0cm
Diameter
4.0mm
Working Length
19.0cm
CAT #
EL9101
4.00mm, Sterling, Bur, Oval

5.5mm Burs

CAT #
HPS-HB11
5.50mm EL Hip Prebent Spherical Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-HB12
5.50mm EL Hip Prebent Polishing Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-H011
5.50mm HPS Spherical Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-H014
HPS Polishing Bur, 5.5mm x 19.0cm
Diameter
5.5mm
Working Length
19.0cm
CAT #
55SPH-EL-RH
5.50mm, Sterling, Bur, Spherical, 20° Reduced Hood
CAT #
EL9260A
5.50mm, Sterling, Shaver, Gator

6.0mm Burs

CAT #
HPS-HB13
EL Hip Prebent Oval Bur, 6.0mm x 19.0cm
Diameter
6.0mm
Working Length
19.0cm
CAT #
HPS-H012
6.00mm HPS Oval Bur
Diameter
6.00mm
Working Length
19.00cm
CAT #
HPS-H013
HPS Pear Bur, 6.0mm x 19.0cm
Diameter
6.0mm
Working Length
19.0cm

4.2mm Burs

CAT #
HPS-C001
4.20mm HPS Great White®, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-C003
4.20mm HPS FRR, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-C004
4.20mm HPS Ultracut®, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
EL9247D
4.20mm, Sterling, Shaver, Full-Radius Resector, Pre-Bent 15°, Convex
CAT #
EL9247U
4.20mm, Sterling, Shaver, Full-Radius Resector, Pre-Bent 15°, Concave
CAT #
EL9263A
4.20mm, Sterling, Shaver, Gator
CAT #
EL9299
4.20mm, Sterling, Shaver, Great White
CAT #
EL9299D
4.20mm, Sterling, Shaver, GreatWhite, Pre-Bent 15°, Convex
CAT #
EL9299U
4.20mm, Sterling, Shaver, Great White, Pre-Bent 15° Concave
CAT #
EL9356
4.20mm Merlin, Shaver, Cuda®, Bendable to 30°
CAT #
EL9405
Ultracut®, 4.2mm, Shaver Blade, Extended Length

EXPERIMENTA LA DIFERENCIA

Sistema de RF artroscópico bipolar Edge®
button decoration
Manejo de fluidos CONMED
button decoration
Sistema de visualización integrado 4K Looking Glass®
button decoration
Ancla de todo sutura Y-Knot® PRO Flex
button decoration
