Constant Diameter, Sentinel®, and Badger™

Reamers

Engineered for efficient, controlled tunnel drilling

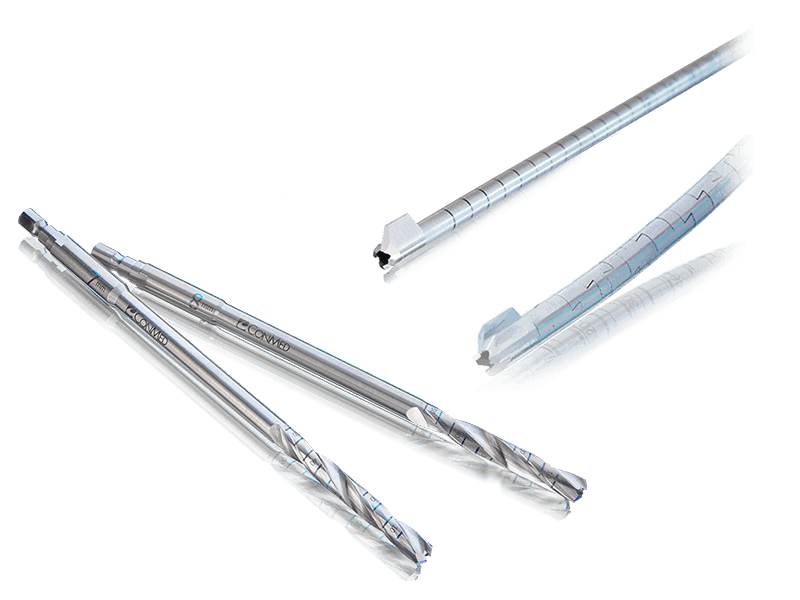

constant diameter with sentinel and badger reamers

CONMED offers a variety of reamers designed for quick bone removal while reducing trauma during knee procedures.

Constant Diameter

  • Fully-fluted design for fast yet controlled drilling
  • Beveled flute edges designed to reduce soft tissue trauma
  • Deep flutes capture bone material for later grafting

Sentinel®

  • Mono-fluted design provides 270° of smooth surface to protect the medial condyle from damage during medial portal approach
  • GraftMax™ Flex Sentinel® can be used with a pin driver or GraftMax™ curved guide

Badger™

  • Acorn style drill bit delivers aggressive front cutting edges
  • Smooth shaft designed to protect the PCL during transtibial approach

Documents and Specifications

Instruments

Constant Diameter Reamer - 5.0mm x 178.0mm

CAT # CD050
Dimensions 5.0mm x 178.0mm

Constant Diameter Reamer - 5.5mm x 178.0mm

CAT # CD055
Dimensions 5.5mm x 178.0mm

Constant Diameter Reamer - 6.0mm x 178.0mm

CAT # CD060
Dimensions 6.0mm x 178.0mm

Constant Diameter Reamer - 6.5mm x 178.0mm

CAT # CD065
Dimensions 6.5mm x 178.0mm

Constant Diameter Reamer - 7.0mm x 178.0mm

CAT # CD070
Dimensions 7.0mm x 178.0mm

Constant Diameter Reamer - 7.5mm x 178.0mm

CAT # CD075
Dimensions 7.5mm x 178.0mm

Constant Diameter Reamer - 8.0mm x 178.0mm

CAT # CD080
Dimensions 8.0mm x 178.0mm

Constant Diameter Reamer - 8.5mm x 178.0mm

CAT # CD085
Dimensions 8.5mm x 178.0mm

Constant Diameter Reamer - 9.0mm x 178.0mm

CAT # CD090
Dimensions 9.0mm x 178.0mm

Constant Diameter Reamer - 9.5mm x 178.0mm

CAT # CD095
Dimensions 9.5mm x 178.0mm

Constant Diameter Reamer - 10.0mm x 178.0mm

CAT # CD100
Dimensions 10.0mm x 178.0mm

Constant Diameter Reamer - 10.5mm x 178.0mm

CAT # CD105
Dimensions 10.5mm x 178.0mm

Constant Diameter Reamer - 11.0mm x 178.0mm

CAT # CD110
Dimensions 11.0mm x 178.0mm

Constant Diameter Reamer - 12.0mm x 178.0mm

CAT # CD120-1
Dimensions 12.0mm x 178.0mm

Constant Diameter Reamer - 13.0mm x 178.0mm

CAT # CD130
Dimensions 13.0mm x 178.0mm

Accessories

High Strength Guide Pin 9”

CAT # 9742D
Dimensions 9”x2.4mm

High Strength Guide Pin 14”

CAT # 9744D
Dimensions 14”x2.4mm

High Strength Guide Pin 12”

CAT # 9745D
Dimensions 12”x2.4mm

Sentinel Drill Bits

Sentinel® Drill Bit, 5.5mm

CAT # S8555
Diameter 5.5mm
Length 229.0mm

Sentinel® Drill Bit, 6.0mm

CAT # S8560
Diameter 6.0mm
Length 229.0mm

Sentinel® Drill Bit, 6.5mm

CAT # S8565
Diameter 6.5mm
Length 229.0mm

Sentinel® Drill Bit, 7.0mm

CAT # S8570
Diameter 7.0mm
Length 229.0mm

Sentinel® Drill Bit, 7.5mm

CAT # S8575
Diameter 7.5mm
Length 229.0mm

Sentinel® Drill Bit, 8.0mm

CAT # S8580
Diameter 8.0mm
Length 229.0mm

Sentinel® Drill Bit, 8.5mm

CAT # S8585
Diameter 8.5mm
Length 229.0mm

Sentinel® Drill Bit, 9.0mm

CAT # S8590
Diameter 9.0mm
Length 229.0mm

Sentinel® Drill Bit, 9.5mm

CAT # S8595
Diameter 9.5mm
Length 229.0mm

Sentinel® Drill Bit, 10.0mm

CAT # S8510
Diameter 10.0mm
Length 229.0mm

Sentinel® Drill Bit, 10.5mm

CAT # S85105
Diameter 10.5mm
Length 229.0mm

Sentinel® Drill Bit, 11.0mm

CAT # S8511
Diameter 11.0mm
Length 229.0mm

Sentinel® Drill Bit, 11.5mm

CAT # S85115
Diameter 11.5mm
Length 229.0mm

Sentinel® Drill Bit, 12.0mm

CAT # S8512
Diameter 12.0mm
Length 229.0mm

Reamers

Channel Reamer, Straight, 4.5mm

CAT # C8545
Diameter 4.5mm
Length 229.0mm
Qty 4/box

Badger Drill Bits

Badger® Drill Bit, 5.0mm

CAT # C8550
Diameter 229.0mm
Qty 4/box

Badger® Drill Bit - 6.50mm

CAT # C8593
Diameter 6.50mm
Length 229.00mm
Purchasing Unit of Measure Qty 4

Badger® Drill Bit, 9.0mm

CAT # C8692
Diameter 9.0mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 9.5mm

CAT # C8584
Diameter 9.5mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 10.0mm

CAT # 8594
Diameter 10.0 mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 10.5mm

CAT # C8585
Diameter 10.5mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 11.0mm

CAT # 8595
Diameter 11.0 mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 12.0mm

CAT # 8596
Diameter 12.0mm
Length 229.0mm
Qty 4/box

Badger® Drill Bit, 13.0mm

CAT # 8597
Diameter 13.0mm
Length 229.0mm
Qty 4/box

Reamers

GraftMax Flex Channel Reamer, 4.5mm

CAT # KC8545

GraftMax Flex Channel Reamer, 5.0mm

CAT # KC8550

GraftMax Flex Sentinel Reamer, 5.5mm

CAT # KS8555

GraftMax Flex Sentinel Reamer, 6.0mm

CAT # KS8560

GraftMax Flex Sentinel Reamer, 6.5mm

CAT # KS8565

GraftMax Flex Sentinel Reamer, 7.0mm

CAT # KS8570

GraftMax Flex Sentinel Reamer, 7.5mm

CAT # KS8575

GraftMax Flex Sentinel Reamer, 8.0mm

CAT # KS8580

GraftMax Flex Sentinel Reamer, 8.5mm

CAT # KS8585

GraftMax Flex Sentinel Reamer, 9.0mm

CAT # KS8590

GraftMax Flex Sentinel Reamer, 9.5mm

CAT # KS8595

GraftMax Flex Sentinel Reamer, 10.0mm

CAT # KS8510

GraftMax Flex Sentinel Reamer, 10.5mm

CAT # KS85105

GraftMax Flex Sentinel Reamer, 11.0mm

CAT # KS8511

GraftMax Flex Sentinel Reamer, 12.0mm

CAT # KS8512
