QUANTUM®

Total Ankle System

Treating ankle arthritis

quantum

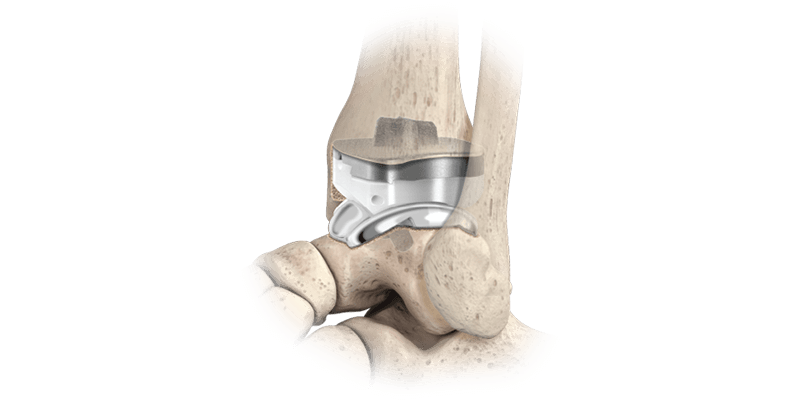

The QUANTUM® system is designed to address the complexity of TAR and allow reproducible outcomes for every surgeon. The intuitive instrumentation and tray design help streamline the procedure.
quantum total ankle system diagram

OrthoPlanify™ Patient Specific Instrumentation

Get full control of implant placement prior to case validation with software designed to provide complete visualization during case pre-planning. Perform reconstruction and planning using CT scan and weight-bearing X-rays, as well as 3D-printed custom tibial and talar cutting and drilling guides.

Current US Users: Click here to access the planning portal.



Tibial Components

  • Curved medial profile and lateral fibular contour with unique cross-shaped keel for rotational stability and direct axial loading
  • Side-specific, standard, and long versions in various sizes to cater to patient anatomy
  • Designed to rest on the cortical rim
  • Titanium alloy construction with titanium porous coating
  • Tibial inserts feature a dovetail locking mechanism, ultra-high molecular weight polyethylene construction, and side-specific implants in various sizes

Talar Components

  • Side-specific, standard, and flat-cut varieties in various sizes
  • Double radius of curvature and a tronconic shape are designed to replicate healthy ankle kinematics
  • Cobalt-chrome (CoCr) construction with titanium porous coating
