AirSeal® iFS
Intelligent Flow System
AirSeal® iFS
AirSeal® is the ONLY insufflator backed by clinical data.
36 peer-reviewed studies across five specialties demonstrated that AirSeal®:
What Sets AirSeal® Apart
Pressure precision with AirSeal® enables you to perform surgery at low pressure with confidence, knowing you will maintain your working space. Unlike conventional high-flow insufflation, AirSeal® maintains a stable pneumoperitoneum even with large leaks and heavy suction.1,2
How AirSeal® Helps You Intraoperatively
AirSeal® provides uninterrupted visibility and clear operative fields through stable pneumoperitoneum and constant smoke evacuation, enabling you to operate efficiently at low pressure.1,2
How AirSeal® Works Differently
A proprietary cannula design creates a responsive gas barrier, ensuring CO2 flow and pressure consistency. This enables precision at low pressure without compromising surgical exposure.
Patients Benefit from Low Pressure
Published data also shows that laparoscopic surgery with AirSeal® at low pressure, versus standard insufflation, improved postoperative pain scores.5-12
“After hundreds of cases and a significant amount of data collected in our research studies, I was confident that the AirSeal® System would become the new standard of care. I will not operate without it.”
Jaime Landman, MD
Professor of Urology and Radiology Chairman, Department of Urology University of California

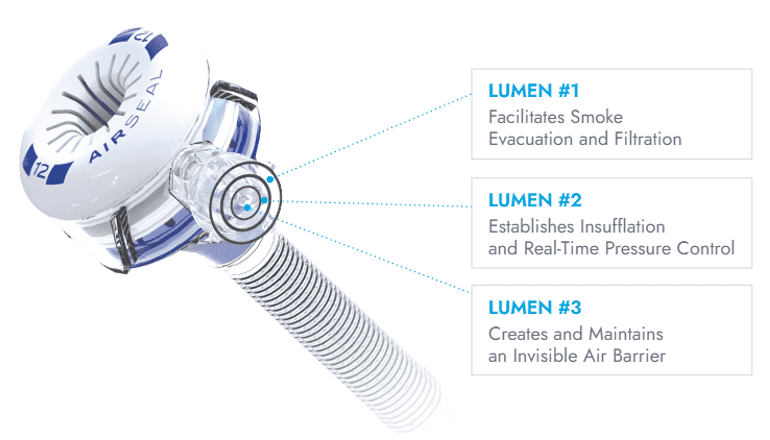

AirSeal®’s proprietary cannula design ensures uninterrupted CO2 flow and simultaneous smoke evacuation to create a responsive gas barrier that maintains a stable pneumoperitoneum. This is different from devices that attempt to deliver multiple functions through the same lumen.
- Multiple lengths and sizes
- Bladeless optical and blunt tip configurations
- Only one required per procedure

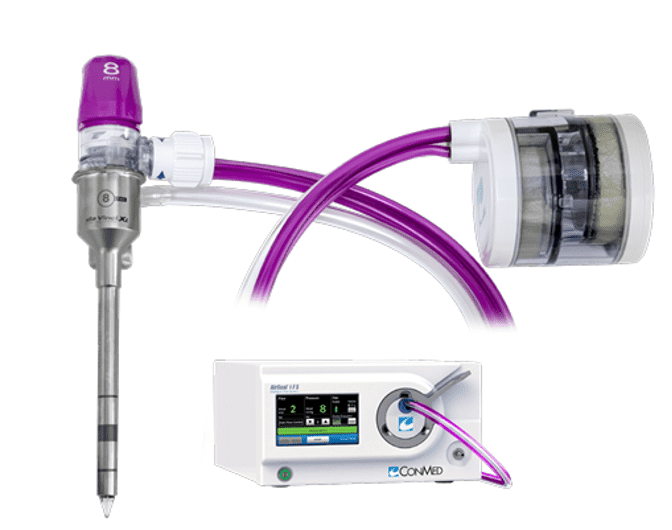

CONMED and Intuitive Surgical's collaboration brings you the AirSeal® Robotic Solution. This enables seamless integration with the da Vinci X and XI systems* - without the need for an assist port. LEARN MORE HERE.
A 3-in-1 Solution to Accommodate Every OR
“I can’t emphasize enough how much AirSeal® has helped both myself and my patients. I believe in AirSeal® because it improves my patients’ outcomes and maintains my surgical exposure… even in smokey cases and when I have a high BMI patient.”
Eben Strobos, MD, FACS, FASCRS
Video Gallery
AirSeal® System - Product Video
Dr. D'Hondt - Why I Use The AirSeal® System
Dr. de Lacy - Why I Use The AirSeal® System
Dr. Ponce - Why I Use The AirSeal® System
Dr. Riachi Testimonial - Why I Use the AirSeal® System
Dr. Jensen Testimonial - Why I Use AirSeal® and the AirSeal® Robotic Solution
Dr. Stone - Laparoscopic Cholecystectomy Using the AirSeal® System
Dr. Mahan - eTEP Hernia Repair Using AirSeal® Robotic Solution
Dr. Moawad - Two-Port Laparoscopic Hysterectomy Using the AirSeal® System
Dr. DiCicco - Robotic Sleeve Gastrectomy Using the AirSeal® Robotic Solution
Dr. Pullatt - Single Anastomosis Duodenal Switch (SADI) Technique Using AirSeal®
Dr. Abaza - Robotic Prostatectomy and Lymphadenectomy with Ultra-low Pneumoperitoneum Using AirSeal®
Dr. Advincula - Robot-Assisted Laparoscopic Myomectomy Using the AirSeal® System
Dr. Voloyiannis - Takedown of Colovesical Fistula of the Sigmoid Colon Secondary to Diverticulitis Using AirSeal®
Dr. Voloyiannis - Takedown of Splenic Flexure Using AirSeal®
Dr. Pullatt Presentation (2024) - The Value of Low Pressure in Complex Reoperative Surgery and Surgery on High BMI Patients
Dr. Mottrie Presentation (2023) - What Are the Clinical Benefits of Using Low Stable Pressure?
Dr. De Landsheere Presentation (2020) - AirSeal® in Gynecological Laparoscopy
Dr. Decaestecker Presentation (2020) - AirSeal® in Low Impact Robotic Cystectomy
Dr. Wolthuis Presentation (2020) - How AirSeal® Supports Low Impact Colorectal Surgery
Dr. Dandrifosse Presentation (2020) - AirSeal® in Bariatric Surgery
Dr. Rothenberg Presentation (2020) - Potential Benefits of AirSeal® in Pediatric Thoracoscopic Surgery
AirSeal® System - In-Service - Part 1: System Overview
AirSeal® System - In-Service - Part 2: iFS On-Screen Tutorials
AirSeal® System - In-Service - Part 3: iFS User Menus
AirSeal® System - In-Service - Part 4: AirSeal® Mode Disposables Needed
AirSeal® System - In-Service - Part 5: AirSeal® Mode: Steps for Use in Non-Primary Insufflation
AirSeal® System - In-Service - Part 6: AirSeal® Mode Steps for Use in AirSeal® Primary Insufflation
AirSeal® System - In-Service - Part 7: Smoke Evacuation Mode Disposables Needed, Steps for Use
AirSeal® System - In-Service - Part 8: Standard Insufflation Mode Disposables Needed, Steps for Use
AirSeal® System - In-Service - Part 9: AirSeal® Information Library / Tips and Tricks
Documents and Specifications
Capital Unit
AirSeal iFS1 120V
| CAT # | AS-IFS1 |
| Voltage | 120V |
Accessories
iFS Connector for House (Central) Gas, Must be installed on the iFS DISS Fitting
| CAT # | IFS-WC1 |
| Note | USA/Domestic Use Only |
iFS Connector for House (Central) Gas, Must be installed on the iFS NIST Fitting
| CAT # | IFS-WC2 |
| Note | International Use Only |
iFS Connector for Bottle Gas, Must be installed on the iFS (37° flare fitting)
| CAT # | IFS-BC1 |
| Note | Required Connector for Bottled Gas Use |
| Note | USA and International Use |
AirSeal Cart for iFS, USA/Domestic Use
| AS-ICART | AS-ICART |
| Note | Cart with Bottle Rack, Holds Two “E” Size C02 Tanks |
AirSeal® Cart for iFS with Switching Valve, USA/Domestic Use
| CAT # | AS-ICART-V |
| Note | Holds Two Two “E” Size C02 Tanks, and Switching Valve |
Access Ports
5mm Access Port and Low Profile Obturator with Bladeless Optical Tip
| CAT # | IAS5-100LP |
| Length | 100mm |
| Qty | 6/Box |
5mm Access Port and Low Profile Obturator with Bladeless Optical Tip
| CAT # | IAS5-120LP |
| Length | 120mm |
| Qty | 6/Box |
5mm Smooth Access Port and Obturator with Blunt Tip
| CAT # | IASB5-150 |
| Length | 150mm |
| Note | (for use with single site surgical platforms) |
| Qty | 6/Box |
8mm Access Port and Low Profile Obturator with Bladeless Optical Tip
| CAT # | IAS8-100LP |
| Length | 100mm |
| Qty | 6/Box |
8mm Access Port and Low Profile Obturator with Bladeless Optical Tip
| CAT # | IAS8-120LP |
| Length | 120mm |
| Qty | 6/Box |
12mm Access Port and Obturator with Blunt Tip
| CAT # | IASB12-100 |
| Length | 100mm |
| Qty | 6/Box |
12mm Access Port and Obturator with Blunt Tip
| CAT # | IASB12-120 |
| Length | 120mm |
| Qty | 6/Box |
12mm Access Port and Obturator (Bladeless Optical Tip, 150mm Length)
| CAT# | IAS12-150 |
| Length | 150mm |
| Qty | 6/Box |
12mm Access Port and Palm Grip Obturator with Bladeless Optical Tip
| CAT # | IAS12-100LPI |
| Length | 100mm |
| Qty | 6/Box |
12mm Access Port and Palm Grip Obturator with Bladeless Optical Tip
| CAT # | IAS12-120LPI |
| Length | 120mm |
| Qty | 6/Box |
Filtered Tubing Sets
Tri-Lumen Filtered Tube Set for use with AirSeal® iFS
| CAT # | ASM-EVAC1 |
| Qty | 6/box |
AirSeal® Bifurcated Filtered Tube Set with Activated Charcoal Filter
| CAT # | ASM-EVAC1-BI |
| Purchasing Unit of Measure | 6/Box |
Experience the Difference
Related Products
1 Bucur P, Hofmann M, Menhadji A, et al. Comparison of Pneumoperitoneum Stability Between a Valveless Trocar System and Conventional Insufflation: A Prospective Randomized Trial. Urology. 2016;94:274280. doi:10.1016/j.urology.2016.04.022
2 Nepple KG, Kallogjeri D, Bhayani SB. Benchtop evaluation of pressure barrier insufflator and standard insufflator systems. SurgEndosc. 2013 Jan;27(1):333-8. doi: 10.1007/s00464-012-2434-x. Epub 2012 Jul 26. PMID: 22833262
3 Sroussi J, Elies A, Rigouzzo A, et al. Low pressure gynecological laparoscopy (7mmHg) with AirSeal® System versus a standard insufflation (15mmHg): A pilot study in 60 patients. J Gynecol Obstet Hum Reprod. 2017;46(2):155-158. doi:10.1016/j.jogoh.2016.09.003
4 Covotta M, Claroni C, Torregiani G, et al. A Prospective, Randomized, Clinical Trial on the Effects of a Valveless Trocar on Respiratory Mechanics During Robotic Radical Cystectomy: A Pilot Study. Anesth Analg. 2017;124(6):1794-1801. doi:10.1213/ANE.0000000000002027
5 Saway JP, McCaul M, Mulekar MS, McMahon DP, Richards WO. Review of Outcomes of Low Verses Standard Pressure Pneumoperitoneum in Laparoscopic Surgery. Am Surg. 2022;88(8):1832-1837. doi:10.1177/00031348221084956
6 Celarier S, Monziols S, Célérier B, et al. Low-pressure versus standard pressure laparoscopic colorectal surgery (PAROS trial): a phase III randomized controlled trial. Br J Surg. 2021;108(8):998-1005. doi:10.1093/bjs/znab069
7 Ferroni MC, Abaza R. Feasibility of robot-assisted prostatectomy performed at ultra-low pneumoperitoneum pressure of 6 mmHg and comparison of clinical outcomes vs standard pressure of 15 mmHg. BJU Int. 2019 Aug;124(2):308-313. doi: 10.1111/bju.14682. Epub 2019 Feb 7. PMID: 30653808
8 Ramshaw B, Forman B, Heidel E, Dean J, Gamenthaler A, Fabian M. A Clinical Quality Improvement (CQI) Project to Improve Pain After Laparoscopic Ventral Hernia Repair. Surg Technol Int. 2016;29:125-130
9 Ramshaw B, Vetrano V, Jagadish M, Forman B, Heidel E, Mancini M. Laparoscopic approach for the treatment of chronic groin pain after inguinal hernia repair : Laparoscopic approach for inguinodynia. Surg Endosc. 2017;31(12):5267-5274. doi:10.1007/s00464-017-5600-3
10 Foley CE, Ryan E, Huang JQ. Less is more: clinical impact of decreasing pneumoperitoneum pressures during robotic surgery. J Robot Surg. 2021;15(2):299-307. doi:10.1007/s11701-020-01104-4
11 Abaza R, Martinez O, Ferroni MC, Bsatee A, Gerhard RS. Same Day Discharge after Robotic Radical Prostatectomy. J Urol. 2019;202(5):959-963. doi:10.1097/JU.0000000000000353
12 Buda A, Di Martino G, Borghese M, et al. Low-Pressure Laparoscopy Using the AirSeal System versus Standard Insufflation in Early-Stage Endometrial Cancer: A Multicenter, Retrospective Study (ARIEL Study). Healthcare (Basel). 2022;10(3):531. Published 2022 Mar 14. doi:10.3390/healthcare10030531
13 Annino, F., Topazio, L., Autieri, D., Verdacchi, T., De Angelis, M., & Asimakopoulos, A. D. (2017). Robotic partial nephrectomy performed with Airseal versus a standard CO2 pressure pneumoperitoneum insufflator: a prospective comparative study. Surgical endoscopy, 31(4), 1583–1590. https://doi.org/10.1007/s00464-016-5144-y
14 Shahait, M., Cockrell, R., Yezdani, M., Yu, S. J., Lee, A., McWilliams, K., & Lee, D. I. (2019). Improved Outcomes Utilizing a Valveless-Trocar System during Robot-assisted Radical Prostatectomy (RARP). JSLS: Journal of the Society of Laparoendoscopic Surgeons, 23(1), e2018.00085. https://doi.org/10.4293/JSLS.2018.00085
15 Paull JO, Parsacandola SA, Graham A, Hota S, Pudalov N, Obias V. The impact of the AirSeal® valve-less trocar system in robotic colorectal surgery: a single-surgeon retrospective review. J Robot Surg. 2021;15(1):87-92. doi:10.1007/s11701-020-01071-w
16 Desroches B, Porter J, Bhayani S, Figenshau R, Liu PY, Stifelman M. Comparison of the Safety and Efficacy of Valveless and Standard Insufflation During Robotic Partial Nephrectomy: A Prospective, Randomized, Multi-institutional Trial. Urology. 2021 Jul;153:185-191. doi: 10.1016/j.urology.2021.01.047. Epub 2021 Feb 10. PMID: 33577899.
