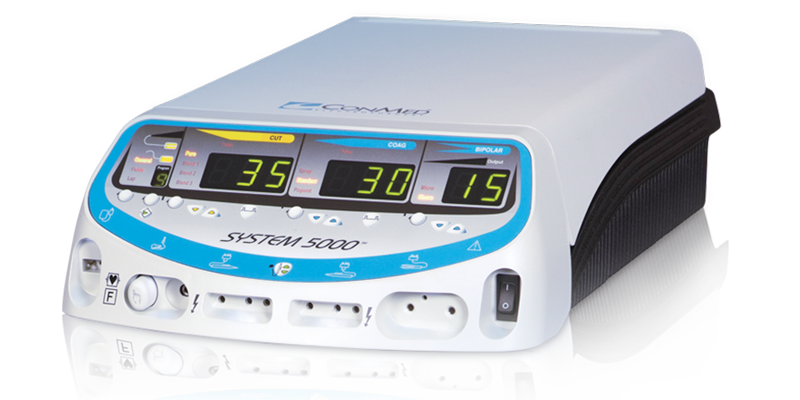

System 5000™
Electrosurgical Generator (ESU)
Uniting technology with versatility
The System 5000™ has become synonymous with safety, performance, precision, and reliability in general, laparoscopic, and robotic surgery.
Proprietary Dynamic Response Technology samples the current and voltage 450,000 times per second, which enables the ESU to respond to tissue impedance changes in less than 10 milliseconds. This ensures that the precise voltage needed is safely delivered to each tissue type.
Gain Efficiency through Specialty Modes
Pre-programmed modes establish a precise baseline of safe energy output for a wide range of clinical indications. Modes include General, Lap, Fluids, Pulse Coag, Pulse Cut, Micro Bipolar, and Macro Bipolar.
Reduce Risk of Coupling and Inadvertent Burns
Lap Mode provides a unique safety feature that helps improve patient safety by significantly reducing these risks during laparoscopic and robotic surgery by limiting voltage in all monopolar modalities to below 2,700 volts.
Minimize Blood Loss
In Pulse Coag Mode with coagulation energy pulsing on and off every 2.5 milliseconds, precise hemostasis is achieved with less tissue carbonization than standard coag at equivalent power settings.
Documents and Specifications
Capital Unit
System 5000™, English Panel, 120.00V (ESU Only)
| CAT # | 60-8005-001 |
| Voltage | 100.00 |
| Purchasing Unit of Measure | Qty 1 |
The System 5000™ ESU, Full
| CAT # | 60-8005-SYS |
| Voltage | 120.00 |
| Monopolar Footswitch Cable | 15.00ft (4.57m) |
| Bipolar Footswitch Cable | 10.00ft (3.05m) |
| Purchasing Unit of Measure | Qty 1 |
Accessories
Bipolar ESU Footswitch, Low Profile
| CAT # | 60-8034-001 |
| Cable Length | 15.00ft (4.57m) |
| Purchasing Unit of Measure | Qty 1 |
System 5000™ Stacking Adapter ESU
| CAT # | 60-8030-001 |
| Purchasing Unit of Measure | Qty 1 |
System 5000™ Mobile Pedestal
| CAT # | 60-8040-001 |
| Purchasing Unit of Measure | Qty 1 |
Experience the Difference
