CONMED® IM8000™ & LS8000™

True HD 3MOS Camera System & Direct LED Light Source

CONMED® IM8000™/LS8000™ is a surgical imaging system designed with high-definition 3MOS (3-chip CMOS) camera chip technology and enhanced image processing to increase the natural color spectrum and enable optimal visualization.

4K MONITOR
  • Designed to provide an optimal, artifact-free HD image for multi-specialty procedures
  • LED backlight uses lower power consumption and zero mercury
  • Display options include pan, zoom, freeze, picture-in-picture, and picture-by-picture
  • Supports a wide range of digital and analog inputs/outputs, including dual DVI, dual 3G SDI, and SOG

    • WUH4000 - Wireless AV Transceiver System available for your second monitor

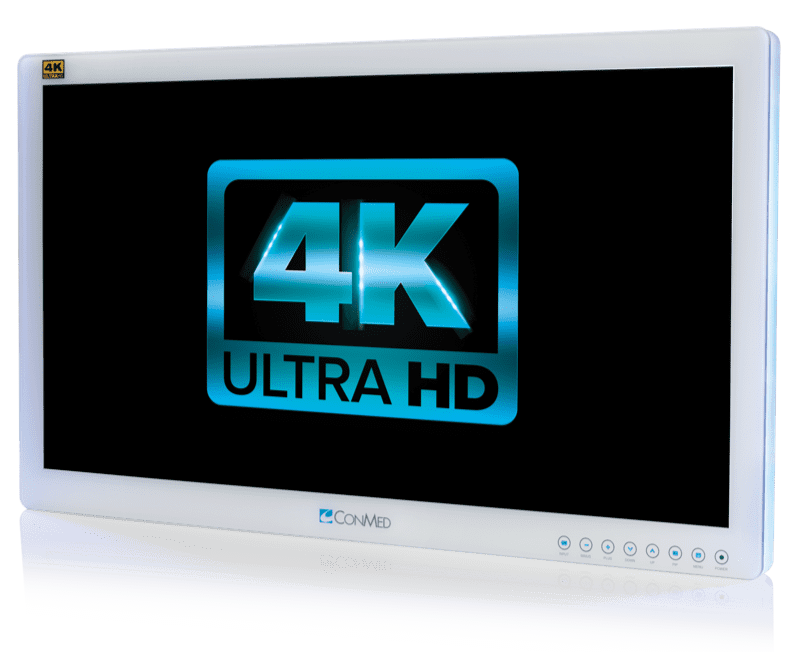

    VP4932 HD Monitor
    CAMERA HEADS

    Three fully autoclavable HD camera heads enable procedural versatility and streamline sterilization.

    • Eyecup: Our most popular camera head, connecting to industry standard Eyecup scopes
    • Cartridge: A proprietary technology with unique scope interface, designed for a fog-free camera experience during procedures where fluid destination is required
    • Urology: Ergonomically designed with a free rotating coupler, camera head cable 90° to the body, and smaller optical lens for a full-circle monitor image

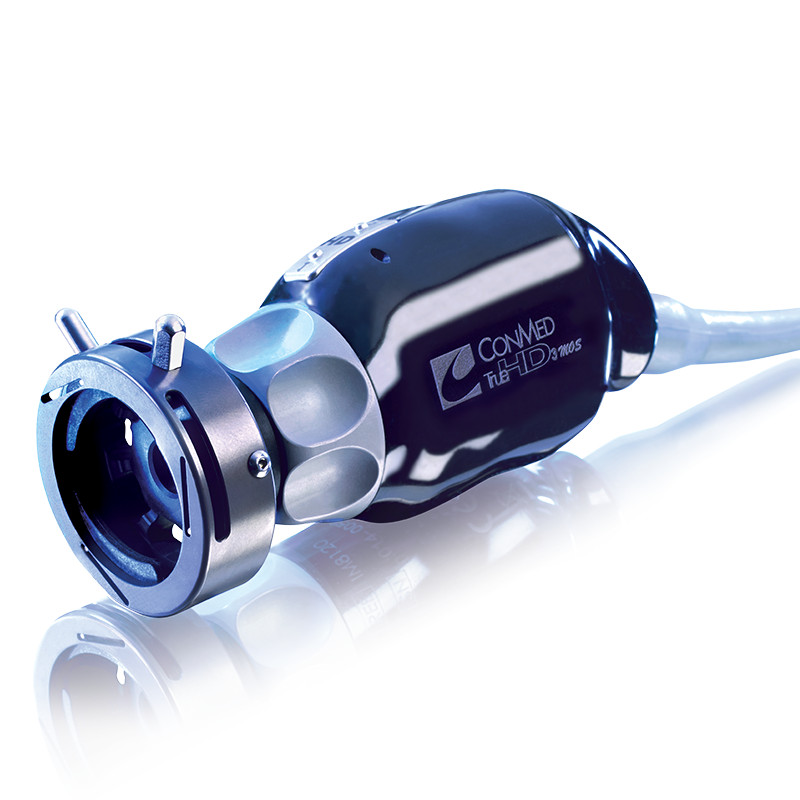

    im8000 camera system
    LIGHT GUIDE

    Our universal fiber optic light guides offer:

    • Autoclavability
    • Superior light transmission
    • Lightweight design
    • Flexibility with universal fittings

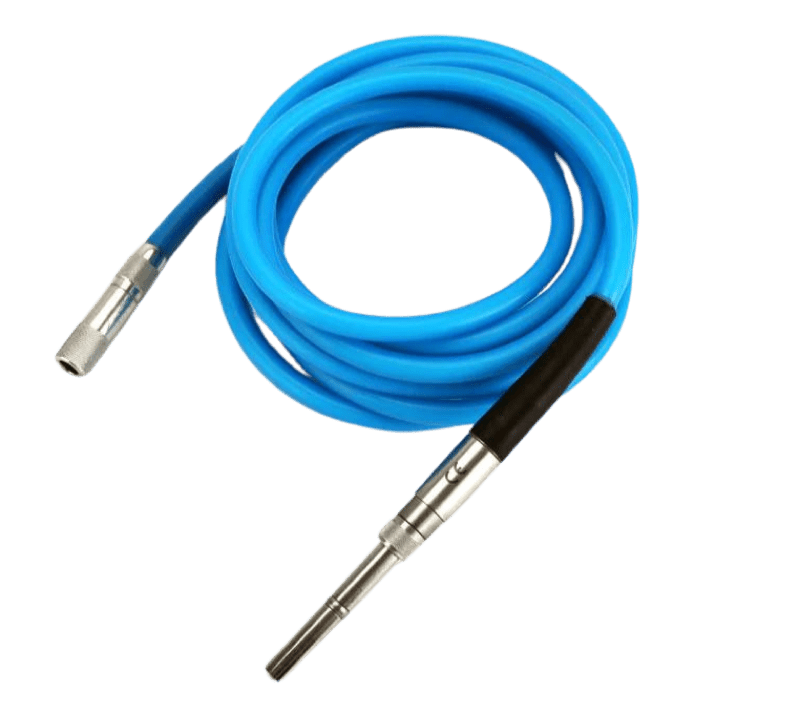

    universal light guide
    VP VISUALIZATION CART

    A platform for high definition equipment, offering:


    • Five adjustable 14" shelves ensures modularity
    • HD-SDI connector for auxiliary monitor
    • CO2 tank holders for insufflation

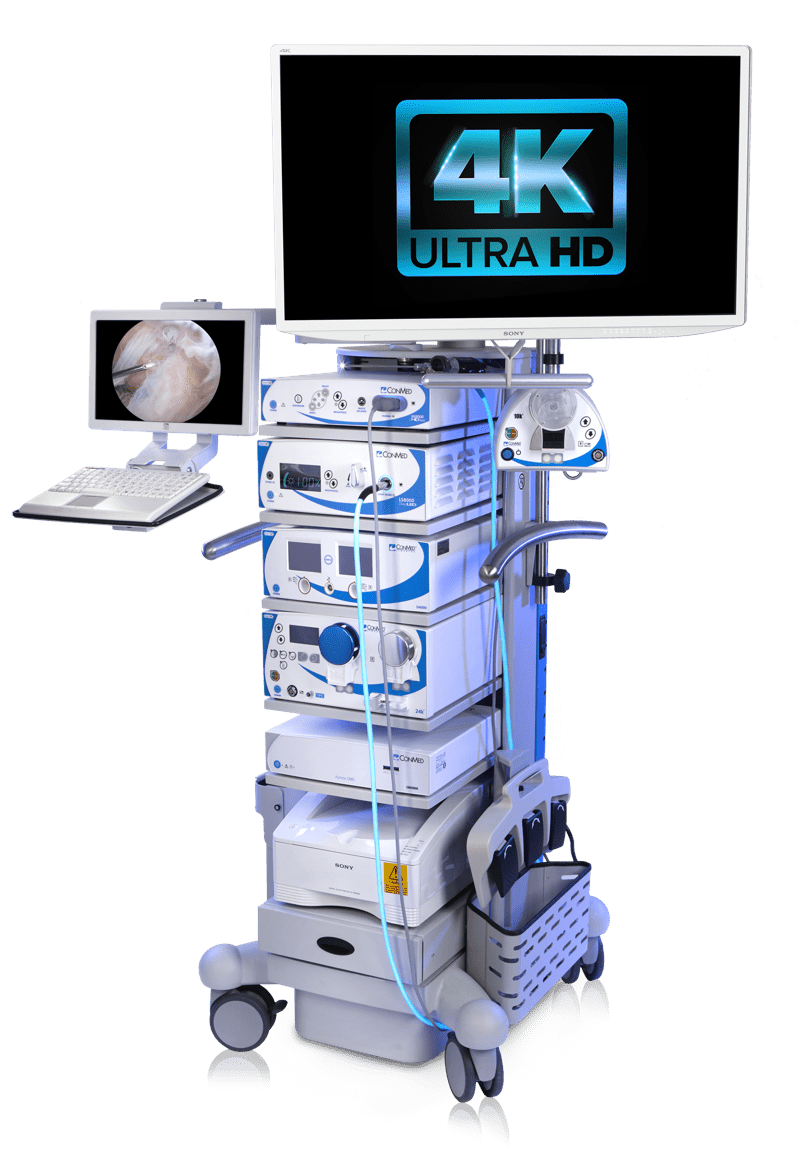

    Full view of a fully loaded vp8500 video cart

    Looking for our latest innovation in 4K Visualization?

    Check out the Looking Glass®

    Documents and Specifications

    Capital Unit

    CAT#
    IM8000
    TRUE HD™ 3MOS CAMERA CONTROLLER

    Resolutions: 1920 x 1080 pixels, Image Sensor: 3 cmOS sensors, Sensitivity: 15lx@F2.8, 3200K I 12db Y level > 210mv, Dimensions console: (D) 14.0 in, 35.5 cm x (W) 3.6 in , 9.2cm x (H) 14.1 in, 35.8 cm, Weight console: 8.6lbs. (3.9kg)

    CAT#
    IM8120
    TRUE HD™ 3MOS CAMERA HEAD - EYECUP
    CAT#
    IM8121
    TRUE HD™ 3MOS CAMERA HEAD - CARTRIDGE
    CAT#
    IM8123
    AUTOCLAVABLE TRUE HD 3MOS “UROLOGY” CAMERA HEAD
    CAT#
    LG1050
    AUTOCLAVABLE LIGHT GUIDE, 5MM X 3M
    CAT#
    LS8000
    DIRECT LED LIGHT SOURCE
    CAT#
    VP4826
    HD LED, LCD MONITOR, 26 IN
    CAT#
    VP4832
    HD LED, LCD MONITOR, 32 IN
    CAT#
    VP4932
    CONMED 4K UHD MONITOR, 32 IN, 81CM

    Accessories

    CAT#
    7451
    LIGHT GUIDE FITTING FOR WOLF & DYONICS SCOPES
    CAT#
    7452
    LIGHT GUIDE FITTING FOR ACMI-STYLE SCOPES
    CAT#
    7453
    LIGHT GUIDE FITTING FOR STORZ, OLYMPUS, & LINVATEC SCOPES
    CAT#
    7455
    LIGHT GUIDE FITTING FOR WOLF & DYONICS LIGHT SOURCES
    CAT#
    7456
    LIGHT GUIDE FITTING FOR ACMI-STYLE LIGHT SOURCES
    CAT#
    7457
    LIGHT GUIDE FITTING FOR STORZ & LINVATEC LIGHT SOURCES
    CAT#
    7458
    LIGHT GUIDE FITTING FOR OLYMPUS LIGHT SOURCES
    CAT#
    VP4602
    FLAT SCREEN ROLL STAND
    CAT#
    VP4832C
    MONITOR COVER, 32"
    CAT#
    VP8500
    VIDEO CART, 120VAC
    CAT#
    VP8500AV-KIT
    CCI RETRO KIT FOR VISUALIZATION CART
    CAT#
    VP8501
    VIDEO CART, 230VAC
    CAT#
    VP8536
    REPLACEMENT ISOLATION TRANSFORMER FOR VP8501 CART 230 VAC
    CAT#
    VP8540
    WIDE SHELF FOR VP8500 CART
    CAT#
    VP8552
    4.6M (15’) POWER CORD, 230 VAC – EUROPE
    CAT#
    VP8559
    4.6M (15’) POWER CORD, 230 VAC – UK
    CAT#
    VP8565
    POST MOUNT HEAVY PANEL FOR VP8500 CART
    CAT#
    VP8570
    PRIMARY ARTICULATING ARM
    CAT#
    VP8571
    SECONDARY ARM WITH KEYBOARD TRAY
    CAT#
    VP8572
    10K PUMP HOLDER
    CAT#
    VP8573
    DUAL TANK GAUGE
    CAT#
    VP8574
    CO2 HOLDER, DUAL TANK HOLDER
    CAT#
    VP8575
    CO2 HOLDER, SINGLE TANK HOLDER
    CAT#
    VP8576
    STORAGE DRAWER
    CAT#
    VP8577
    CAMERA HEAD HOLDER
    CAT#
    VP8578
    FOOTSWITCH BIN
    CAT#
    VP8580
    TANK WRENCH WITH MAGNETIC BASE
    CAT#
    VP8581
    TRINITY™ TABLET ARM
