TruPass®
SW Papillotome
Compatible with short-wire ERCP techniques, CONMED's TruPass® SW Papillotomes are designed to deliver guaranteed orientation.
TruPass® Papillotomes are guaranteed to orient between 11 and 1 o'clock when approaching the papilla1 and backed by the CONMED Biliary Assurance Program.

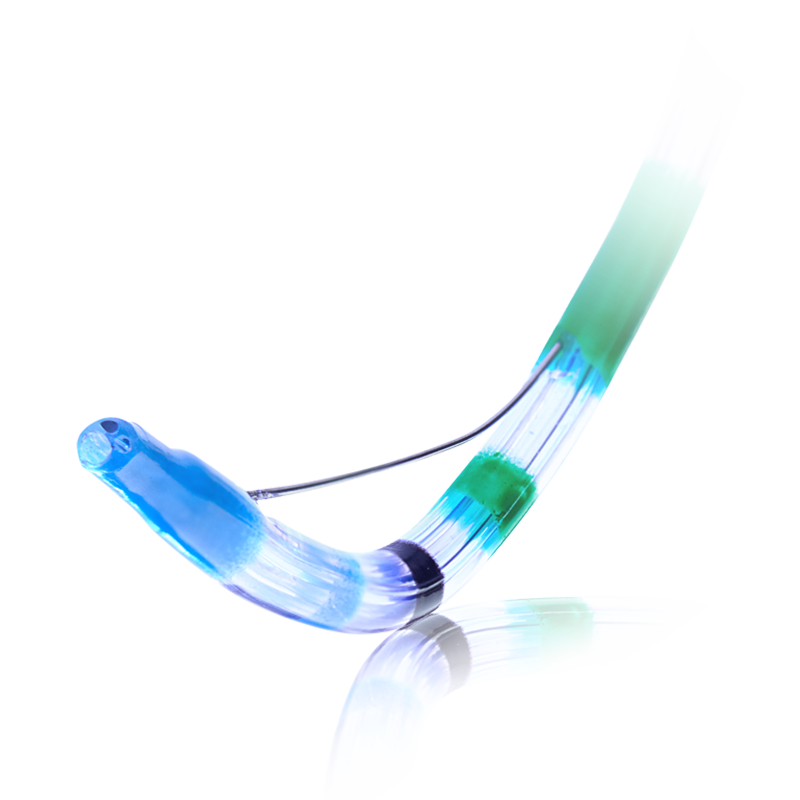

Other TruPass® features include a visible short wire compatible entry ramp that allows for physician control of the wire. Color-coded cutting wire markers offer easy visibility for determining papillotome depth and cutting wire location. The smooth, tapered, atraumatic radiopaque tip is designed to reduce trauma to the papilla.
1 Subject to Terms and Conditions, MCM2017139
Documents and Specifications
Sphincterotomes
TruPass® 20mm Cutting Wire Length
| CAT # | T2043F |
| Cath Length | 190cm |
| Tip OD | 4.5 F |
| Cath OD | 7-4.5 F |
| Cutting Wire Length | 20mm |
| Cutting Wire Type | Monofilament |
| Guidewire Compatibility | .035"/.89mm |
| Qty | 1/Box |
TruPass® 30mm Cutting Wire Length
| CAT # | T3043F |
| Cath Length | 190cm |
| Tip OD | 4.5 F |
| Cath OD | 7-4.5 F |
| Cutting Wire Length | 30mm |
| Cutting Wire Type | Monofilament |
| Guidewire Compatibility | ..035"/.89mm |
| Qty | 1/Box |
TruPass® 20mm Cutting Wire Length with FX Wire®
| CAT # | P2043F |
| Cath Length | 190cm |
| Tip OD | 4.5 F |
| Cath OD | 7-4.5 F |
| Cutting Wire Length | 20mm |
| Cutting Wire Type | Monofilament |
| Guidewire Compatibility | .035” /.89mm |
| Qty | 1/Box |
TruPass® 30mm Cutting Wire Length with FX Wire®
| CAT # | P3043F |
| Cath Length | 190cm |
| Tip OD | 4.5 F |
| Cath OD | 7-4.5 F |
| Cutting Wire Length | 30mm |
| Cutting Wire Type | Monofilament |
| Guidewire Compatibility | .035” /.89mm |
| Qty | 1/Box |
